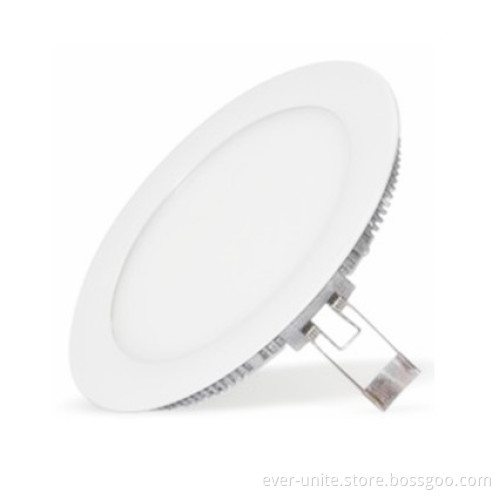

High Power Round Mounted Slim Thin LED Panel Ceiling Light 28W LED Panel Lamp Pl300smdh285zh06W27A-28

Specification
Products name:
High power Round Mounted Slim Thin LED Panel ceiling light 28W LED Panel LampPL300SMDH285ZH06W27A-28
LightType: PL300SMDH285ZH06W27A-28
Light Source: LED
Item Type: Panel Lights
LED Light Source: SMD 3014
Warranty(Years): 2
Input Voltage(V): AC 100V-240V
Lamp Power(W): 28
Lamp Luminous Flux(lm): 1876lm± 10%
Lamp Luminous Efficiency(lm/w): 67
CRI (Ra>): 70
Color Temperature(CCT): Cool White
Working Temperature(? ): -20 - +55
Working Lifetime(Hour): 30000
Lamp Body Material: Aluminum Alloy
IP Rating: IP60
Certification: CCC, C-tick, EMC, ETL
Place of Origin: China (Mainland)
Input Current: 120mA
LED Qty: 216PCS SMD3014
Power Factor: ≥ 0.45
Working Ambient Humidity: Working Ambient Temperature: -20~~+55
Cut-out Size: Diam 225mm
Material: AL + PMMA

Net Weight: 0.82KG Gross Weight: 0.86KG
Dimension: 300*12.5MM

Appearance size


Installation
A, embedded installation
The circlip is arranged on the LED lamp back, fixed with M4 screw, the ceiling opening, using the circlip on the ceiling, the size of holes as shown in fig.
B, ceiling mounted:
1, as shown in Figure 1, the ceiling mounted bracket is arranged on the back of LED lamps.
2, with 4 M4 expansion screws according to the bracket 4 10 hole position is fixed on the ceiling.
3, the LED flat lamp mounting bracket through the expansion screw, the lamp in the direction of oval hole mobility, attached to the ceiling.
4, the 4 expansion screw is arranged on the M4 lamp fixing nut.
C, Suspended installation:
The product with the wire rope accessories package within the LED lighting was installed in the ceiling.
Packaging & Delivery
Packaging Detail: 245*245*60mm/PCS
Delivery Detail: 1-3 working days for samples, 3-15 days for mass production
Attention:
1, the product in the course of their work, try not to touch the hands of the lamp body, to prevent burns
2, try not to use the product in humid environment, so as to avoid the adverse
Note: All information is subject to change without notice. If you have any questions, please contact the supplier.
Our Advantages
Long life time(almoust can be up to 30000 hours).
Energy saving( saving of 90% than incandescent light, and 75% than energy saving light).
Green light source(without UV and IR).
Electronic luminescence( no strobe flashing, no radiation).
Factory /reasonabl price (LED encapsulation is made by ourselves).
Shortest deliver lead time. (LED driver is made by ourselves).
Can directly replace the traditional energy-saving lamp.
No environmental pollution, no mercury pollution is harmful to the environment.
PS: We offered different serise led. If you are interested in these led corn light series, pls feel free to email me to getd the full products catalogue.
Application:
Office, shopping mall, bank, school, hospital, station, etc

Business Terms:
Warranty: 2 Years / 5 Years
Price term: FOB shanghai
Valid period: Within 30 days.
Delivery date: 10-15 days (General)
Payment Term: 100% T/T before Shipping date
Shipment Term: Air Express or Ocean Ship
