Pppe Pipe Production Line

Detailed Product Description

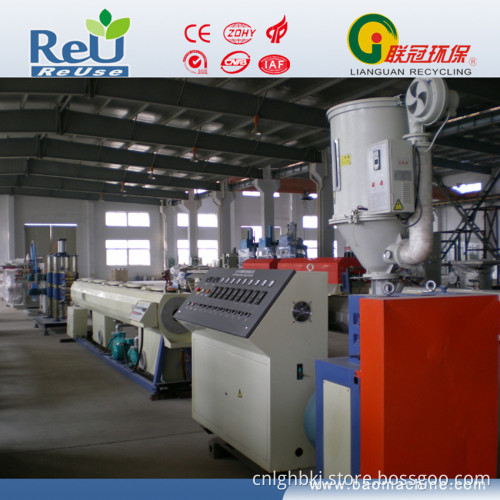

PPPE pipe extrusion line is used to produce PPPE pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.

1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.

2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.

3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR pipes.

4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit; Cutter etc can be controlled by touch screen synchronously.

This line can also be used to produce PP-H, PP-B pipes

Model
PP-RG-32
PP-RG-63
PP-RL-160

Extruder Model
SJ65 × 30 SJ90 × 30 SJ90× 30 SJ25× 25
Produced Pipe Specification(mm) Φ 20-Φ 32 Φ 40-Φ 63 Φ 75-Φ 160
Production Line Speed. M/min
≥ 3-12 ≥ 2-8 ≥ 1.2-6
Compressed air. M3/min. 0.3 0.3 0.5
Cooling water flow 2 7 8
Total Power(kw)
72 115 180
