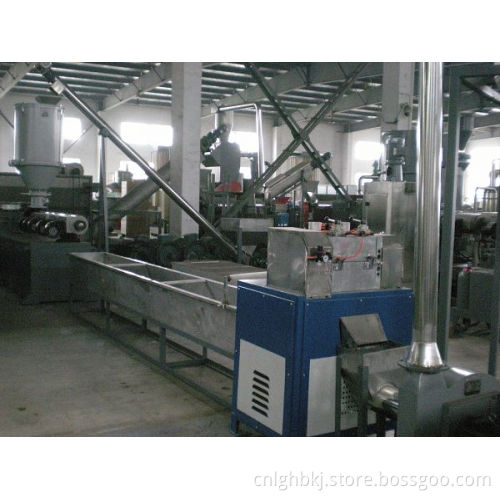

PET Strand Pelletizer

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union, Paypal, cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang
Payment Type:	L/C, T/T, D/P, Western Union, Paypal, cash

Product Description

Main Technical Parameters: `

TE75 horizontal double screw extruder
Screw diameter: 72mm
L/D: 40
There is a material station tested to control
The quantity of the feeding material
Screw amount: 2 piece (gas discharging)
Power: 110kw
Screw speed: 500rpm
Oil pump power: 2.2kw
Computation screw power: 2.2kw

Auto screen changing
Screw's components are made by hi-speed tool steel
The 1, 2, 5, 9 section of the silo heater are made by copper, others are made by aluminum heater.
Temperature control: Automatic
Current meter present, inspect the motor's current, and it's connected with the main motor, which will stop the motor when the current is over set value
Gas discharging mouth: 3
Mold's material 40Cr
Capacity: 300kg/h
