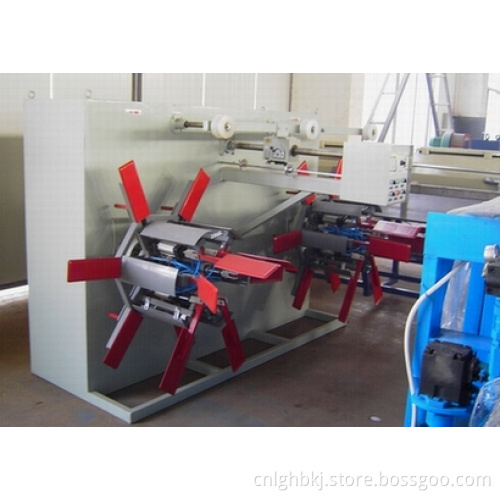

Double Disc Winder

This unit is suitable for packing PE, PP-R, aluminum-plastic compound pipe, cross linked compound pipe, slice material and other plastic, which are from front procedure, automatic winding and speed-adjusting, tension method of winding: Two discs wind alternately to ensure continuity. Pneumatically stretch or furl, equipped with ray creel stand, automatically arrange lines to achieve even arrangement, with neat winding, compact structure, high automatization degree, nice appearance and convenient operation.

Main technical parameters:

Diameter of winding pipe
Φ 16-Φ 110mm(adjustable)

Winding speed
1-0.5-15m/min

Winding width
200-500mm(adjustable)

Specification of winding pipe
Φ 16-Φ 75mm

Air pressure
0.6Mpa

Note: Winders also can be customized according to special requirements.
