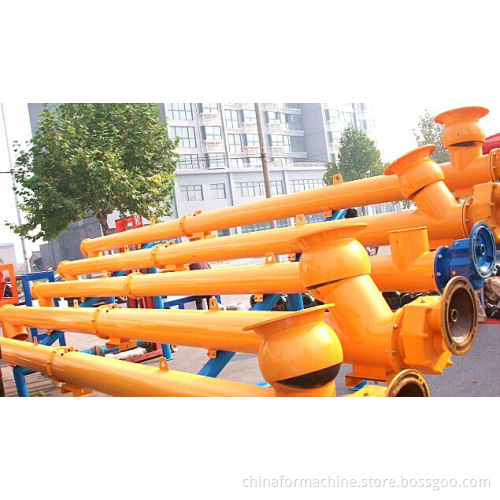

Screw Conveyor for Cement

LSY screw conveyor (pump) is mainly used for concrete mixing station conveying cement, fly ash material, also used in chemical, metallurgy, granary processing, warehousing and other applicable screw conveyor place, LSY screw conveyor (pump) spirochetes small diameter, high speed, high throughput, accuracy, good transportation conditions. Drive with gear reducer with torque, low noise, no oil leakage, long life, high quality seamless delivery shell, flanged connections.
LSY screw conveyor (pump) has overall rigidity, large carrying capacity. In the transportation, either horizontal transport, or transporting large angle can be continuous, and are free to choose the work location and work status, easy disassembly repair, safe and reliable, is ideal for a new generation of environmentally friendly products.


Model LSY250
Diameter of spirochaete(mm) 250
Speed(r/min) 209
External diameter(mm) 273
Rated convey(t/h) 35
Effective conveyer length(m) 5
Working angle 45°
Motor type Y160M-4
Power(kw) 11
