Polystyrene Hot Melting Machine

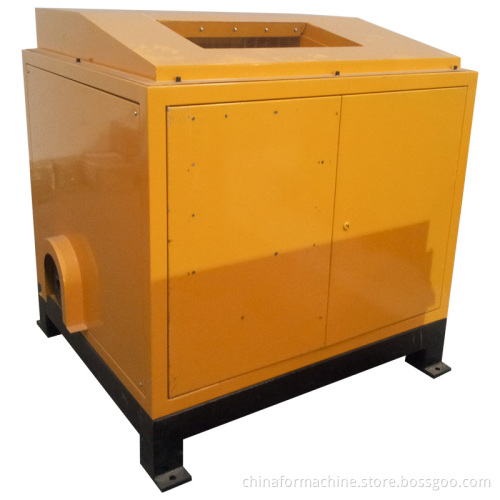

   Small EPS hot melting machine

Welcome  to  zhangjiagang  chinafor machinery co.,ltd . we are  manufacturer  for  plastic recycling  machine ,EPS Hot Melting Recycling Machinery.

During the time, we invite many foreign friends to visit our company. Talking with them about detailed requirement.

The packing for EPS   MACHINE . The following is carton package.

 Machine Features:
1,Twin shaft crushing blades, this machine adopts manual feeding, the material will be crushed by the twin shaft blades and conveyed to the barrel of the main machine through the screen.
2,The screw of the main machine can convey the heating the material to melt condition ,then extrude them and hydraulic blade cut them to pieces for easy storage and transportation.
3,The shape of the products can be designed according to customers' requirement.

Working Principle:
The twin shaft crushing blades are two parallel blades shaft with different rotation direction , each blade shaft has 18 blades and driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature extruded to expected sharps.

Crusher technical :
1,The tilted feeding hopper is easy to put the EPS material in,and the material won't be pushed out during the crushing process.
The EPS hot melting machine use twin shaft crushing blades, two parallel blade shafts symmetrically fixed with blade ,the blade on the two blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle.

Welcome to visit our company!
