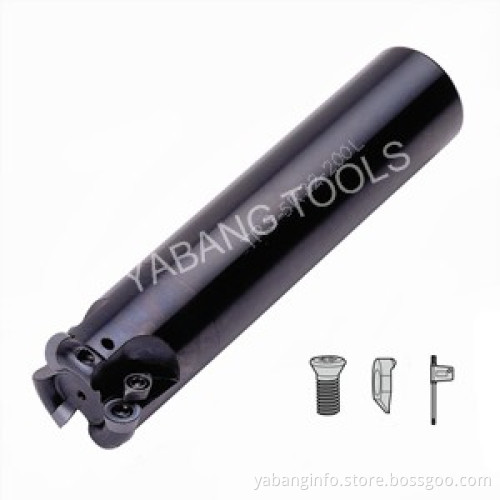

Trs Series - Cutters for Moulds

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Suitable Inserts:
---RDMT0802MOTN
---RDMT10T3MOTN...

Packaging & Delivery:
---There are internal and external package, the cutter was wraped up by oiled paper bag firstly, foam model of the cutter as internal packing and carton box as external packing.

--- Within 10 days after confirmation of the PI and payment.

Specifications:

Face Milling Cutters
--- High productivity;
--- High cost effectiveness;
--- Easily clamping and unclamping;
--- Easy operation

Specification	(mm)Size						Applicable Insert	Accessories			Weight
Specification	Flute(z)	D	d	l	L	h	Applicable Insert	Clamp	Screw	Wrench	Weight
TRS-4R12-130	1	12	12	40	130	4	RDMT0802	Y-4R	M3*6	T8	0.10
TRS-4R16-160	2	16	16	40	160	4					0.20
TRS-4R20-160	2	20	20	50	160	4					0.35
TRS-4R20-200	2	20	20	50	200	4					0.45
TRS-5R25-160	2	25	25	50	160	5	RDMT10T3	Y-5R	M4*10	T15	0.35
TRS-5R25-200	2	25	25	75	200	5					0.75
TRS-5R30-160	2	30	25	40	160	5					0.65
TRS-5R30-200	2	30	25	50	200	5					0.75
TRS-5R30-250	2	30	25	60	250	5					0.95
TRS-5R35-160	3	35	32	50	160	5					1.05
TRS-5R35-200	3	35	32	50	200	5					1.20
TRS-5R35-250	3	35	32	60	250	5					1.55
