Bap Series - Cutters for Moulds

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Suitable Inserts:
---APMT 1135 PDER
---APMT 1604 PDER...

Packaging & Delivery:

Packaging Details: There are internal and external package, the cutter was wraped up by oiled paper bag firstly, foam model of the cutter as internal packing and carton box as external packing.

Delivery Detail: Within 10 days after confirmation of the PI and payment.

Specifications:

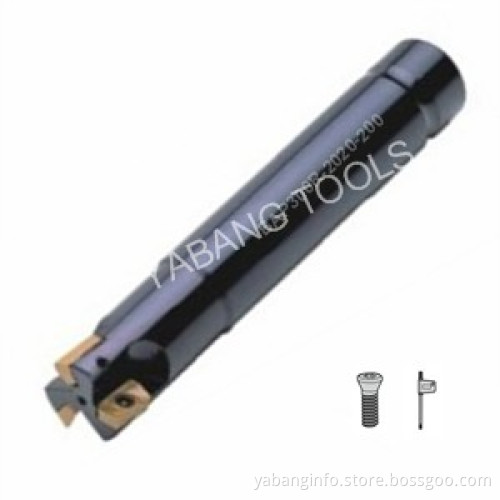

BAP300R/400R Face Milling Cutters
1. High productivity;
2. High cost effectiveness;
3. Easily clamping and unclamping;
4. Easy operation

Feature:

For powerful cutting.
R. P. M and feeding speed are three times more than the general cutter.

Specification	(mm)Size						Applicable Insert	Accessories		Weight
Specification	Flute(z)	D	d	l	L	h	Applicable Insert	Screw	Wrench	Weight
BAP300R-1010-130	1	10	10	30	130	9	APMT 1135 PDER	M2.5*5	T8	0.15
BAP300R-1212-130	1	12	12	30	130	9				0.15
BAP300R-1616-130	2	16	16	30	130	9				0.20
BAP300R-1616-160	2	16	16	40	160	9				0.25
BAP300R-2020-130	2(3)	20	20	40	130	9				0.30
BAP300R-2020-160	2(3)	20	20	40	160	9				0.40
BAP300R-2020-200	2(3)	20	20	50	200	9				0.50
BAP400R-2525-160	2	25	25	50	160	14	APMT 1604 PDER	M4*8	T15	0.60
BAP400R-2525-200	2	25	25	75	200	14				0.75
BAP400R-3232-200	2(3)	32	32	60	200	14				1.25
BAP400R-3232-250	2(3)	32	32	60	250	14				1.55
BAP400R-3232-300	2(3)	32	32	60	300	14				1.85
BAP400R-3232-350	2(3)	32	32	60	350	14				2.15
BAP400R-3532-200	3	35	32	60	200	14				1.25
BAP400R-3532-250	3	35	32	60	250	14				1.60
BAP400R-4032-200	3	40	32	60	200	14				1.35
