Carbide End Mills (D1~D25mm)
- Payment Type:
- L/C, T/T, Western Union, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Western Union, Paypal |
Product Description
Product Description
Product Description

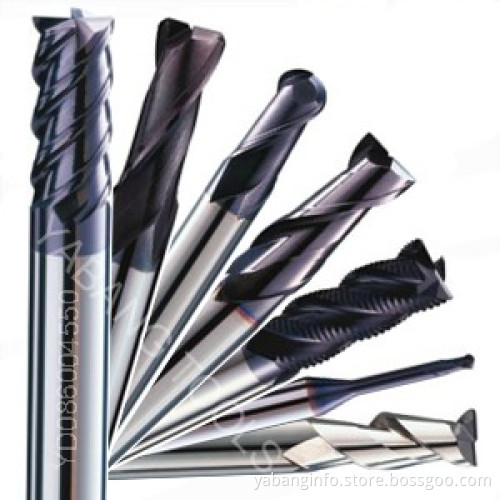

YABANG Carbide End mills Series:
1. Raw Materials:
SANDVIK,Teagutec,Kennametal and Guhring
* WC=90%, Co=10%, TRS>4000N/mm2; Hardness>92HRA, Grain size: 0.5-0.6um; High qulaity of wearability and impact
2. Our Advanced equipments:
* Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN:
*reduce the coeffiction of friction, and improve the tools life much.
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. Work Piece:
*Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy1. Aluminum Carbide End mills Specification
6.Specifications:
*Flute Diameter: D1-D25mm.
*Surface treatment: TIALN coating
*Material: Tungsten steel/ solid carbide.
*Hardness: HRC45 & HRC55 & HRC62
3. Remarks:
*OEM of Carbide End mills.
*Free samples for test
4. Main Technical Parameters:
1. Raw Materials:
SANDVIK,Teagutec,Kennametal and Guhring
* WC=90%, Co=10%, TRS>4000N/mm2; Hardness>92HRA, Grain size: 0.5-0.6um; High qulaity of wearability and impact
2. Our Advanced equipments:
* Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN:
*reduce the coeffiction of friction, and improve the tools life much.
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. Work Piece:
*Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy1. Aluminum Carbide End mills Specification
6.Specifications:
*Flute Diameter: D1-D25mm.
*Surface treatment: TIALN coating
*Material: Tungsten steel/ solid carbide.
*Hardness: HRC45 & HRC55 & HRC62
3. Remarks:
*OEM of Carbide End mills.
*Free samples for test
4. Main Technical Parameters:
| Outside Dia/Dc | Shank Dia/D | Flute Length/LC | Overall Length/L | Flute |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 1 | 4 | 3 | 50 | 2& 3 |
| 1.5 | 4 | 4 | 50 | 2& 3 |
| 2 | 4 | 6 | 50 | 2& 3 |
| 2.5 | 4 | 8 | 50 | 2& 3 |
| 3 | 4 | 9 | 50 | 2& 3 |
| 4 | 4 | 12 | 50 | 2& 3 |
| 5 | 6 | 15 | 50 | 2& 3 |
| 6 | 6 | 18 | 50 | 2& 3 |
| 8 | 8 | 20 | 60 | 2& 3 |
| 10 | 10 | 25 | 75 | 2& 3 |
| 12 | 12 | 30 | 75 | 2& 3 |
| 16 | 16 | 50 | 100 | 2& 3 |
| 20 | 20 | 55 | 100 | 2& 3 |
