PU Automobile Carpet Foaming Line 03

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

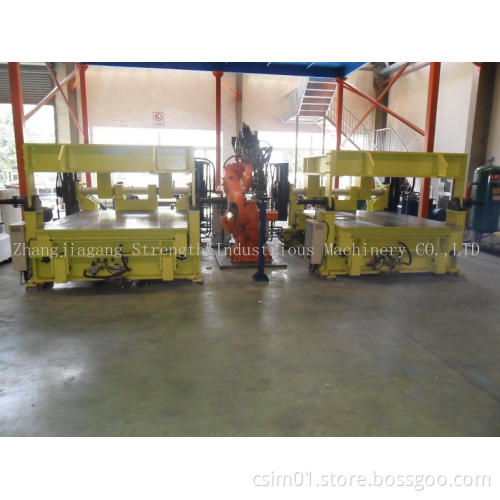

This system consists of 1 set of HPM50/20 high pressure foaming
Machine, 2sets of MHM255/195 Molding Machine, 1 set of ABB
IRB6640-180/2.55 pouring robot, 1 set of hydraulic unit, 1 set of vacuum
Pump unit and electrical control system etc.
It is used for automobile carpet PU foaming on the synthetic fa bric parts and
The other similar parts foaming production.
All the ordinal operation f or foaming production (to open the mold, close the
Mold, lock the mold, drive the mold-plate up/down, clamping the parts etc)
Is hydraulic/pneumatic driven and by PLC control.
Molding Machine Main Technical Parameter:
Mold installation board area: 2, 550× 19, 50mm
Mold installation space height: 670mm
Movable mold-plate stroke: 50mm
Mold-plat above open angle: 180°
Mold-plat below open angle: 90°
Hydraulic working pressure: 10~ 12MPa
Control voltage: AC 220V/DC24V
