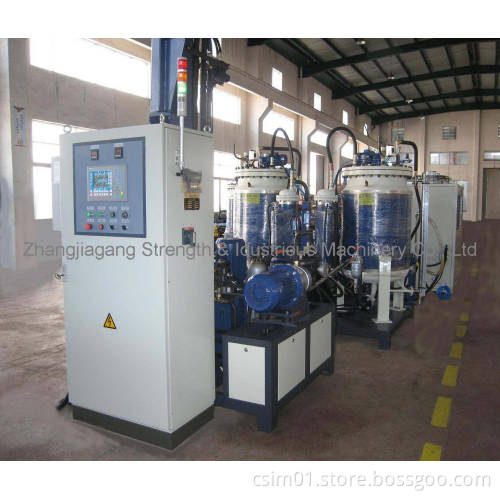

High Pressure Foaming Machine (HPM180, HPM100)

Such key parts as metering pump, high pressure mixing head, PLC etc. Are imported, So its with high performance and reliability.
The HPM series high pressure foaming machine is widely used in allthe polyurethane foaming industries such as refrigeration applications---refrigerator, freezer cabinet, water heater, disinfection cabinet thermal insulation layer and air conditioning sandwich panel.

Main Technical Parameter

* Type: HPM180, HPM100, HPM40, HPM20, HPM10
* Suitable foaming system: Rigid foam, half-rigid foam, flexible foam, integral skin foam.
* Suitable material viscosity at 22 degree Centigrade:
Polyol: Max. 2500 mPa. S,
Isocyanate: Max. 1000 mPa. S,
* Mixing ratio range adjustable 3: 1 ~ 1: 3
* Pouring programming time: 0.50~99.99sec

* Water supply required: Processed running water, flow capacity: 300L/min. Brings R1 " the ball valve;
* The compressed air supply required: 0.7 Mpa, flow capacity: 600NL/min. Dry, oil-less, the dew point at 20 degrees below zero centigrade; With the1.0Mpa pressure relief valve and R3/4" the ball valve;
* Or the nitrogen supply required (if needs): 0.7 Mpa, flow capacity: 600NL/min. With the 1.0Mpa pressure relief valve and R3/4 the ball valve;
* Power supply required: 3× 380V/50Hz± 10% or as customerslocal condition
* Control voltage: AC110V/DC24V;

The Basic Components:
The Metering Unit,
High, Low Pressure Recirculation Switchover Unit,
Components Flow Output Control System,
Hydraulic Control Unit,
High Pressure Mixing Head,
The Components ContainerUnit,
Electrical ControlSystem,
Compressed Air CoolingDryer,
Filling Unit,
Temperature Control Unit,
