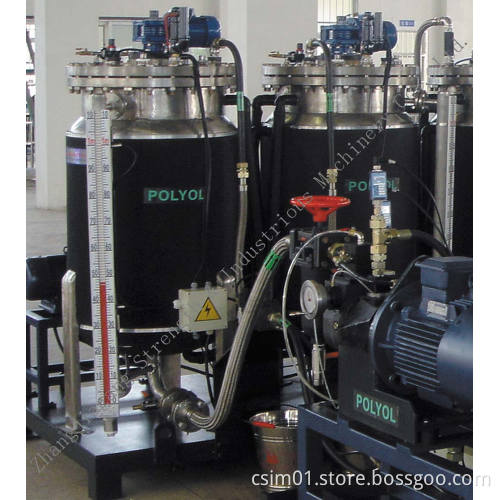

Component Container

Double walled structure, temperature insulation out of surface of the tank;
Certified according to GB150-1998

Used in to store up and the control polyether polyols, isocyanate and the attachment component.

@effective volume: 60, 160, 250, 500, 750, 1000L;

@ material: Carbon steel, stainless steel;

@ working pressure max. 0.45 or 0.60 or 1.0Mpa;

@ safety valve;

@ agitator with mechanical sealing or no leaking magnetic coupling;

@ with pressure gauge compressed air pressure relief valve or with pressure switch nitrogen decompressor;

@non-return valve on the filling port;

@magnetic liquid level meter: Visual level with alarm sensors for lowest level alarm: Stop the mixing head shot

@ filling level: Start filling

@ high level: Stop filling

@ super high level alarm: Emergency stop; Or electrode capacitance liquid level meter

@ heat exchanger: Pipe-type heat exchanger installed outside the tank.

@ temperature probe;

@ double walled structure, temperature insulation out of surface of the tank; Certified according to GB150-1998
