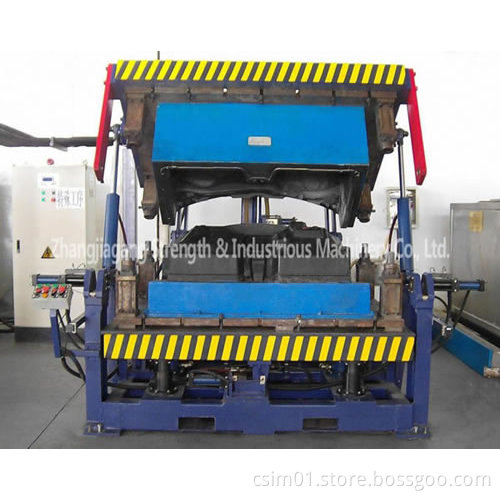

PU Foaming Moulding Machine (MH200/150)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang
Payment Type:	L/C, T/T

Product Description

MH200/150PU Foaming Moulding Machines is a new type equipment developed based onZSIMs MH type mold carrier, mainly be used for automobile anacousticcushion parts foaming production.

All the ordinaloperation for foaming production (to open the mold, close the mold, lock the mold, drive the mold-plate up/down, clamping the parts, to doedge-breaking of the parts) is hydraulic/pneumatic driven and by PLCcontrol.
The mold can be operated as single-station or equipped as multi-station system with high productivity.

Main Technical Parameter:
Mold installation board area: 2000× 1500mm;
Mold installation space height: 830mm;
Movable mold-plate stroke: 100 mm;
Mold-open angle: ~30°
Hydraulic working pressure: 8~ 12MPa;
Control voltage: AC 110V/DC24V
