Rt Rotary Tables PU Foaming Line

This production line uses the production pattern that the automatic intermittent type or the continuous working.

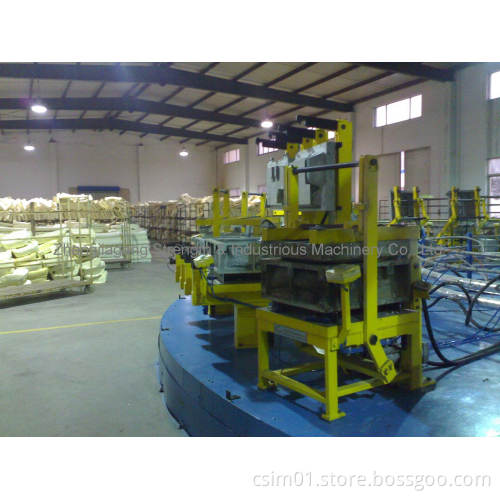

The RT1100/18 automobile seat cushion foaming line.

That is composed of 1 set HPM50/50/20 three-component double-hardness highpressure foaming machine, 1 set diameter 11 meters rotary tablefoaming line by including installed on the rotary table 6 sets ofMP16085 mold carriers as well as 12 sets MP7065 mold carriers, themold temperature controller and so on.

This production line uses the production pattern that the automatic intermittent type or thecontinuous working, adjustment the rotary table rotational speed by thefrequency converter, automatically opening\ closing the moldcarrier, automatic identify mold number, by manual control or automaticcontrol mixing-head to pouring, various equipment components haveprovided the advanced electricity control system, may separable stepdebugging, when production it is operated on-line.

Technical Parameter for RT1100 RotaryTable:

1. Production tact: 15 ~30sec.;
2. Time of per circle for mold conveying on the line: 4~8min.;
3. Rotary table height: 425mm;
4. Production ways: Automatic intermittent type stopped pouring;
Or the continuous working, manual following pouring; Or automatic Robot pouring;
5. Main motor power: 5.5kw;
6. Heating power of the mold temperature controller: 2*15kw;
Supply water tank volume: 200L;

7. The compressed air supply required:
The pneumatic cylinder: 0.8 Mpa, dry, oil mist; Flow capacity: 1000NL/min.;
The gasbag: 0.45 Mpa, dry, oil-less; Flow capacity: 1000NL/min.;
8. Power supply required: Three phase 380V/50Hz plusmn 10% or as customer's local condition;
Control voltage: AC220V/DC24V;
Total power: 38kw;
9. Floor space: 12500*12500mm.

Common the rotary table model and specification,
RT700, RT900, RT1100;
