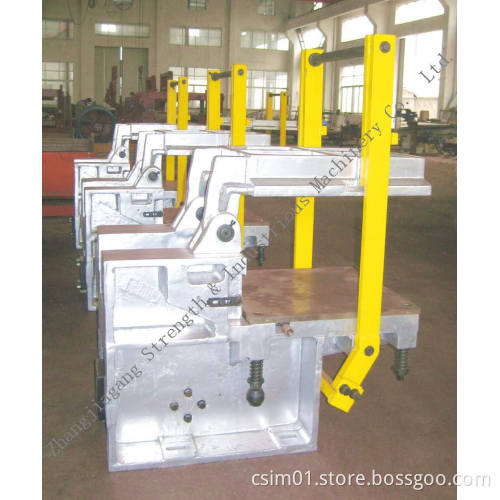

MP5050 Pneumatic Actuated Mold Carriers

MP 5050 pneumatic driven mold carrier is mainly used forautomobile head rest PU foaming and the other soft- foam PU parts.

MP 5050 pneumatic driven mold carrier is mainly used for automobile head rest PU foaming and the other soft- foam PU parts production. The mold can be operated as single-station or equipped asmulti-station with high productivity. The dimension of the carrier is according to the relevant mold which due to the polyurethane.

Main Technical Parameter:

. 1 Mold installation board area (mm): 500 × 500,

. 2 Mold installation space height (mm): 350,

. 3 Working stroke (mm):

Opening \closing mold pneumatic cylinder: ~210,

The gasbag: 20,

. 4 Working pressure (Mpa)

Opening \closing mold pneumatic cylinder: 0.6 ~0.7,

The gasbag: 0.30,

. 5 Mold-locking forces (kgf ): ~6, 000,

. 6 Mold-open angle: ~ 85°

. 7 weight (kg): ~ 550
