MP Series Pneumatic Actuated Mold Carrier

MP series pneumatic drive mold carrier is mainly be used for automobile seat cushion foaming production and the other soft-foam.

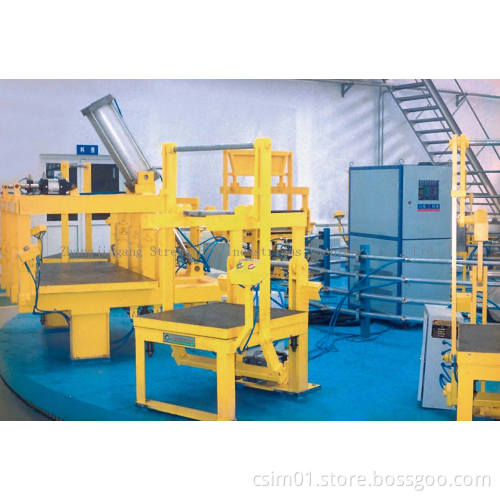

MP series pneumatic drive mold carrier is mainly be used for automobile seat cushion foaming production and the other soft-foam and/or rigid foam PU parts production. The mold carrier can be operated as single-station or equipped as multi-station with high productivity. The dimension of the carrier is according to the relevant mold which due to the polyurethane.

Main Technical Parameter:

MP16580 MP7065

. 1 Mold installation board area (mm): 1650 × 800; 700 × 650;

. 2 Mold installation space height (mm): 450; 350;

. 3 Working stroke (mm):

Opening \closing mold pneumatic cylinder: ~260; ~220;

The gasbag: 20; 20;

. 4 Working pressure (Mpa)

Opening \closing mold pneumatic cylinder: 0.6 ~0.7;

The gasbag: 0.30;

. 5 Mold-locking forces (kgf ): ~18, 000; ~7000;

. 6 Mold-open angle: 85°

. 7 weight (kg): ~1600; ~ 950
