Product Description

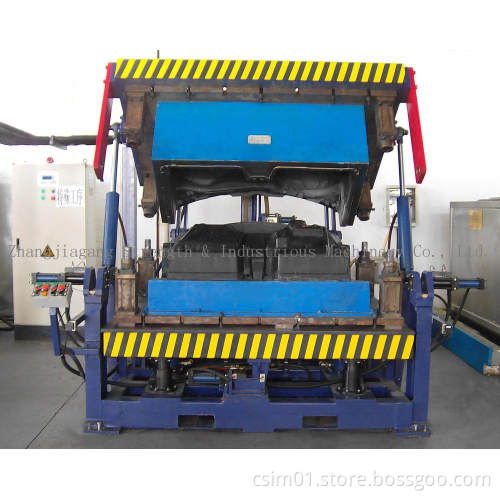

MH200/150 hydraulically driven mold carrier

It is a new type equipment developed based on ZSIMs MH type mold carrier, mainly be used for automobile anacoustic cushion parts foaming production.

All the ordinal operation for foaming production (to open the mold, close the mold, lock the mold, drive the mold-plate up/down, clamping the parts, to do edge-breaking of the parts) is hydraulic/pneumatic driven and by PLC controlled.

The mold can be operated as single-station or equipped as multi-station system with high productivity.

Main Technical Parameter:

Mold installation board area: 2000× 1500mm;

Mold installation space height: 830mm;

Movable mold-plate stroke: 100 mm;

Mold-open angle: ~30 degree;

Hydraulic working pressure: 8~ 12MPa;

Control voltage: AC 220V/DC24V
