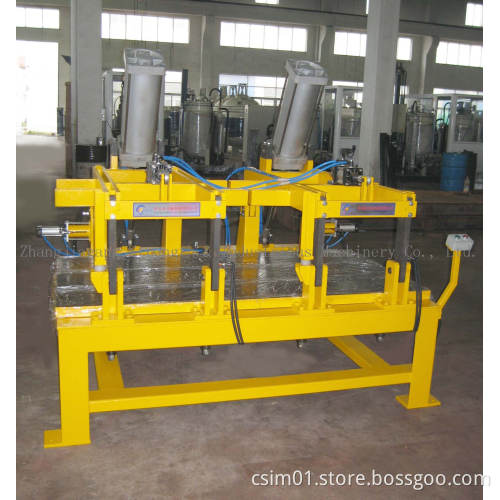

Pneumatic Electronic Control Actuated Mold Carrier

It is mainly be used for automobile seat cushion foaming production and the other soft-foam and/or rigid foam PU parts production. The mold carrier can be operated as single-station or equipped as multi-station with high productivity.

Main Technical Parameter:

1 Mold installation board area (mm): 1950 × 1000;
2 Mold installation space height (mm): 450;
3 Working stroke (mm):
Opening \closing mold pneumatic cylinder: ~260;
The gasbag: 20;

4 Working pressure (Mpa)
Opening \closing mold pneumatic cylinder: 0.6 ~0.7;
The gasbag: 0.30;

5 Mold-locking forces (kgf ): ~18, 000;
6 Mold-open angle: 85 degree;
7 weight (kg): ~1850;
