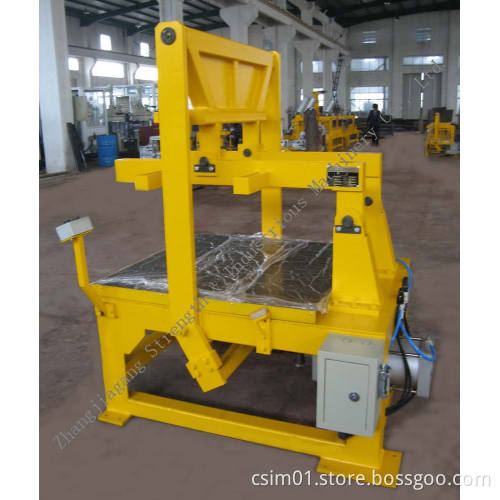

MP-E100100 Pneumatic Electronic Control Actuated Mold Carrier

Control Actuated Mold Carrier is adopted Pneumatic Electronic Control. The equipment is more reliability.

MP-E100100 penumatic electronic control actuated mold carrier

It is mainly be used for automobile seat cushion foaming production and the other soft-foam and/or rigid foam PU parts production. The mold carrier can be operated as single-station or equipped as multi-station with high productivity.

Main Technical Parameter:

. 1 Mold installation board area (mm): 1000 × 1000;

. 2 Mold installation space height (mm): 350;

. 3 Working stroke (mm):

Opening \closing mold pneumatic cylinder: ~230;

The gasbag: 20;

. 4 Working pressure (Mpa)

Opening \closing mold pneumatic cylinder: 0.6 ~0.7;

The gasbag: 0.30;

. 5 Mold-locking forces (kgf ): ~10, 000;

. 6 Mold-open angle: 85°

. 7 weight (kg): ~950;

MP-E195100 penumatic Electronic control actuated mold carrier

Main technical parameter:

1. Mold installation board area(mm): 1, 950*1, 000

2. Mold installation space height(mm): 450

3. Working stroke(mm):

Opening/closing mold pneumatic cylinder: ~260

The gasbag: 20

4. Working pressure(Mpa):

Opening /closing mold pneumatic cylinder: 0.6~0.7

The gasbag: 0.30

5. Mold-locking forces(kgf): ~18, 000

6. Mold-open angle: ~90 degree;

7. Weight(kg): ~1850
