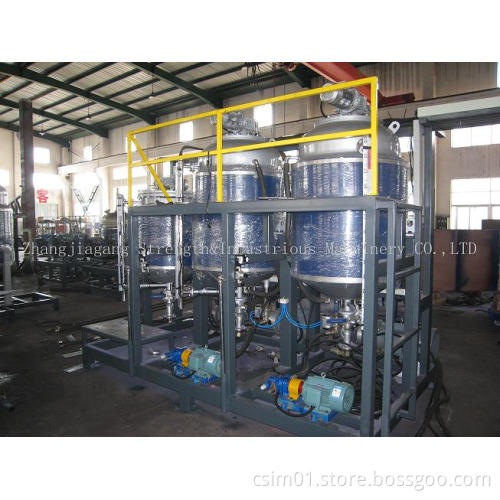

Hpm175/ 90/ 10 Polyurethane Mixing Machine

Use 4 component s high pressure mixing head, may reduce the pressure of control piston-rod's return launder, avoid the system appearing the overpressure phenomenon, simultaneously mixing effect is perfectly.

When 2 components be working the foaming machine can save 90Kw electrical energy per hour compared to two component HPM700, per shift (work 7 hours) can be saving 630kw electrical energy. Save a lot of electricity a year, saving more energy, more environment alloy friendly.

Main technical parameter:
Suitable foaming system: Rigid foam, semi-rigid foam;
Suitable material viscosity (22centigrade):
Polyol: Max. ~2, 500 mPa. S;
Isocyanate: Max. ~1, 000 mPa. S;
Mixing ratio range adjustable: 1: 1~1: 3;
Work pressure: 6~22MPa;

Pouring output:
HPM700: 3000~9500g/s;
HPM350: 1500~4800 g/s;
Pouring program time: 0.50~999.99sec. (precision: 0.01S)
Power supply required: Three phase 380V/50Hz plusmn10% or as customer's local condition
Control voltage: AC220V/24V;
Ground dimension: ~5, 5000*6, 000mm
