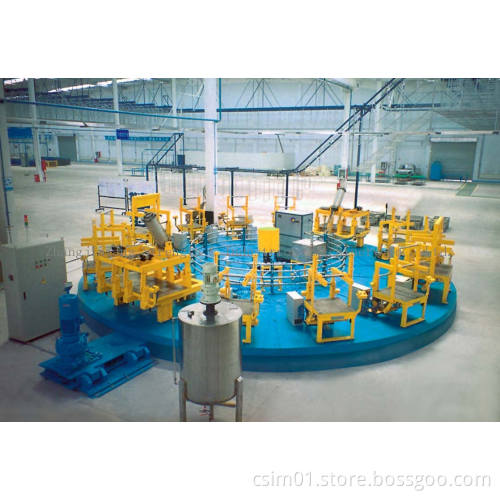

RT Rotary Tables PU Foaming Line (RT900/16)

By manual control or automatic control mixing-head to pouring, have provided the advanced electricity control system,

The RT900/16 automobile seat cushion foaming line.

This production line uses the production pattern that the automatic intermittent type or the continuous working, adjustment the rotary table rotational speed by the frequency converter, automatically opening\ closing the mold carrier, automatic identify mold number, by manual control or automatic control mixing-head to pouring, various equipment components have provided the advanced electricity control system, may separable step debugging, when production it is operated on-line.

Technical Parameter for RT900 RotaryTable:
1. Production tact: 15 ~30sec.;
2. Time of per circle for mold conveying on the line: 4~8min.;
3. Rotary table height: 425mm;
4. Production ways: Automatic intermittent type stopped pouring;
Or the continuous working, manual following pouring; Or automatic Robot pouring;
5. Main motor power: 5.5kw;
6. Heating power of the mold temperature controller: 2× 15kw;
Supply water tank volume: 200L;
7. The compressed air supply required:
The pneumatic cylinder: 0.8 Mpa, dry, oil mist; Flow capacity: 1000NL/min.;
The gasbag: 0.45 Mpa, dry, oil-less; Flow capacity: 1000NL/min.;
8. Power supply required: Three phase 380V/50Hz plusmn; 10% or as customer's local condition;
Control voltage: AC220V/DC24V;
Total power: ~38kw;
9. Floor space: 11500* 11500mm.

Common the rotary table model and specification,
RT700, RT900, RT1100;
