PU Automobile Acoustic Cushion Foaming Line

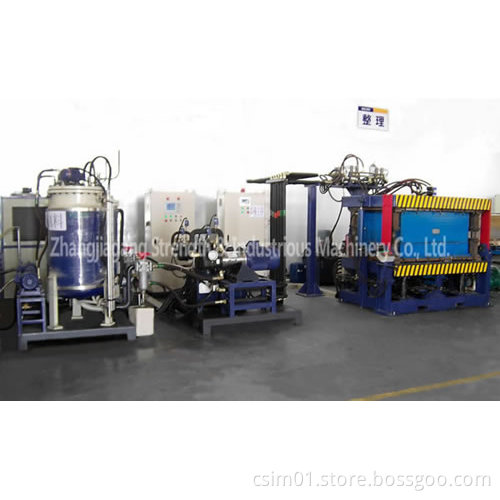

PU automobile anacoustic cushion foaming line

The foaming line is special designed forautomobile anacoustic cushion foaming. It consists of 1 sethigh-pressure foaming machine and 1 set MH200/150 PU Foaming MouldingMachine.

All the ordinal operation for foamingproduction (to open the mold, close the mold, lock the mold, drive themold-plate up/down, clamping the parts, to do edge-breaking of theparts) is hydraulic/pneumatic driven and by PLC control.

Main Technical Parameter

* Type: HPM50/20;
* Suitable foaming system: Flexible foam, integral skin foam,
* Suitable material viscosity 22 degree Centigrade:

Polyol: Max. 3000 mPa. S,
Isocyanate: Max. 1000 mPa. S

* The flow capacity ranges: 100-950g/s,
* Mixing ratio range adjustable ~ 2-2.5: 1,
* Pouring programming time: 0.50~99.99sec

* Mold installation board area: 2000*1450mm;
* Mold installation space height: 830mm;
* Movable mold-plate stroke: 100 mm;
* Mold-open angle: ~30 degree;
* Hydraulic working pressure: 8~ 12MPa;
* Control voltage: AC 220V/DC24V
