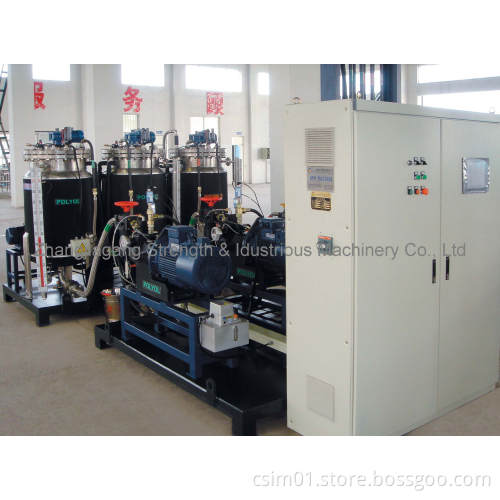

High Pressure Foaming Machine (HPM20/20/10)

Such key parts are imported, so its with high performance and reliability. The component flow is controlled by flowmeter.

The HPM20/20/10 machine is special designed for automobile seat cushion, head rest, steering wheel foaming, equipped with 3 components tank and metering system ( polyol 1, polyol 2 and isocyanate1) and 1 set of 4-components L-type dual-chamber mixing head. The component flow is controlled by flowmeter so that you can get different mixing ratio for the dual-hardness parts.

Main Technical Parameter

* Type: HPM20/20/10;
* Suitable foaming system: Flexible foam, integral skin foam,
* Suitable material viscosity 22 degree Centigrade:
Polyol1: Max. 3000 mPa. S,
Polyol2: Max. 3000 mPa. S,
Isocyanate: Max. 1000 mPa. S,

* The flow capacity ranges: 60~450g/s,
* Mixing ratio range adjustable ~ 2-2.5: 1,
* Pouring programming time: 0.50~99.99sec
* Water supply required: Processed running water, flow capacity: 300L/min. Brings R1the ball valve;
* The compressed air supply required: 0.7 Mpa, flow capacity: 600NL/min. Dry, oil-less, the dew point -20 degree Centigrade; With the 1.0Mpa pressure relief valve and R3/4 " the ball valve;

* Power supply required: Three phase 380V/50Hz plusmn 10% or as customer's local condition
Total power: ~45kw,
Control voltage: AC220V/DC24V;
* Weight: ~ 3, 500kg,
* Floor space: ~4, 000mm*5, 600mm
