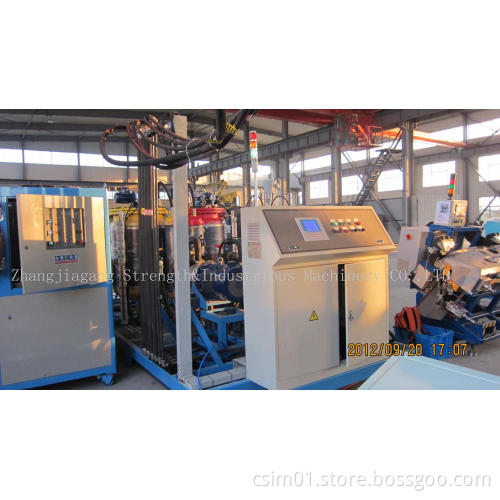

Four Mixing Head High Pressure Foaming Machine

Such key parts as metering pump, high pressure mixing head, PLC etc. Are imported, So its with high performance and reliability.
This type of the high pressure foaming machine can be adapted to the refrigerator cabinets and doors foaming. The polyol side motor be adopted double-speed, Isocyanate side be adopted frequency conversion motor. Due to growing cost pressures, the demand for reliable the production operating with maximum economic efficiency is increasing.

It is used to less 220L Refrigerator and freezers cabinet/door foaming.
1 Main parameters and descriptions
1.1 Type: HPM100P
1.2 Suitable foaming system: Rigid foam, Semi rigid foam
1.3 Pouring output: 160~ 1600g/s1460rpm. ( at mixing ratio 1: 1 )
75~ 750g/s 710rpm, with mixing ratio adjustable 5: 1~1: 5
1.4 Pouring programing time: 0.50~99.99 sec.
1.5 Mixing head shot-timer number:
2× 8 shot-buttons time programmable for manually push operation and
1.6 Metering unit:
Polyol side Isocyanate side
Motor power 11kw, 1460/710rpm 11kw
( double-speed motor ) (Frequency conversion)

Working viscosity ~2500mPa. S ~1500mPa. S
Explosion-proof measures on the machine:
Enclosure and gas-exhausting system for theunits of polyol /cyclopentane;
The flammable gas detecting and monitoring system;
Nitrogen gas pressurization for the container;
Ex type of the motors, valves and relevant electric elements;
Grounding;
Leakage monitoring and control;
Nitrogen gas filling for the mixing headpouring area (mold or cabinet space);
A long distance monitoring system is used for the production area.
