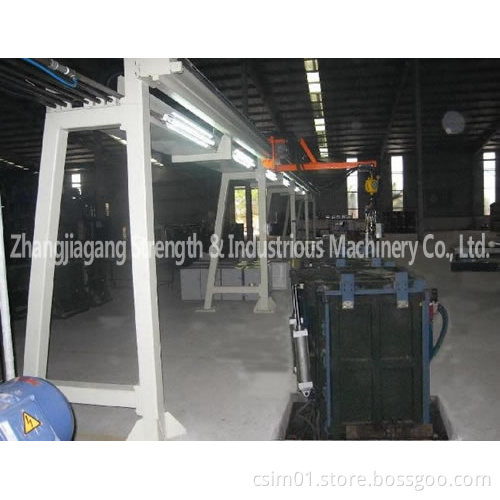

Simple Linear Refrigerator Foaming Line (SLFL-10-200/100)

Simple linear refrigerator, freezer cabinet PU foaming line

Itis designed for freezer cabinet pur foaming production. The line isinstalled as straight line on the horizontal ground, havingcharacteristics of simple in structure, easy to use, flexible operationand good performance such as low prices.

Theelectricity control system uses Germany Siemens PLC, op control unit, may preset correlation craft parameter such as very mold carrier agingtime, travel rate of mixing head mobile device, the mixing head pouringunit such as manual or the automatic control and so on.

Main technical parameters:

Type: Slfl-10-200/100,

Mold installation board area (mm): 2000 × 1000

Production tact: 36--60 sec.,

Time of per circle mixing head mobile device on the line: 6~10 min.,

Running mode: Intermission running,

Heating way: Mold temperature water heating;

Power supply required: 3× 380V/50Hz± 10% or as customer's local condition,

Control voltage: AC 220V/DC24V,

Total power: 25kw;

Dimension equipment (l × W × H): ~ (23000 × 3000 × 2700) mm
