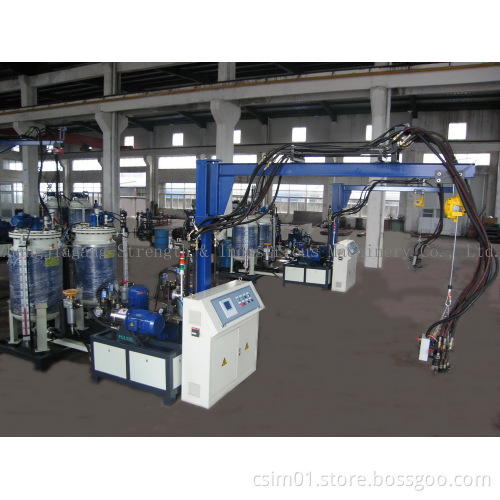

High Pressure Foaming Machine

HPM series high pressure foaming machine is widely used in allthe polyurethane foaming industries such as refrigeration applications---refrigerator, freezer cabinet, water heater, disinfection cabinet thermal insulation layer and air conditioning sandwich panel

Main Technical Parameter

* Type: HPM40, HPM100, HPM180, HPM350, HPM700(350);
* Suitable foaming system: Rigid foam, half-rigid foam, flexible foam, integral skin foam.

* Suitable material viscosity at 22 degree Centigrade:

Polyol: Max. 1500 mPa. S,

Isocyanate: Max. 1000 mPa. S,

* Mixing ratio range adjustable 1: 3 ~ 3: 1

* Pouring programming time: 0.50~99.99sec

* Water supply required: Processed running water, flow capacity: 300L/min. Brings R1 " the ball valve;

* The compressed air supply required: 0.7 Mpa, flow capacity: 600NL/min. Dry, oil-less, the dew point at 20 degrees below zero centigrade; With the1.0Mpa pressure relief valve and R3/4" the ball valve;

* or the nitrogen supply required (if needs): 0.7 Mpa, flow capacity: 600NL/min. With the 1.0Mpa pressure relief valve and R3/4 the ball valve;

* Power supply required: Three phase 380V/50Hz plusmn10% or as customer's local condition

* Control voltage: AC220V/DC24V;
