Polyol/Cyclopentane Storage and Feeding System (PMS ST1500)

It is suitable in the continuous production pattern, may feed the foaming production line continues with the component material

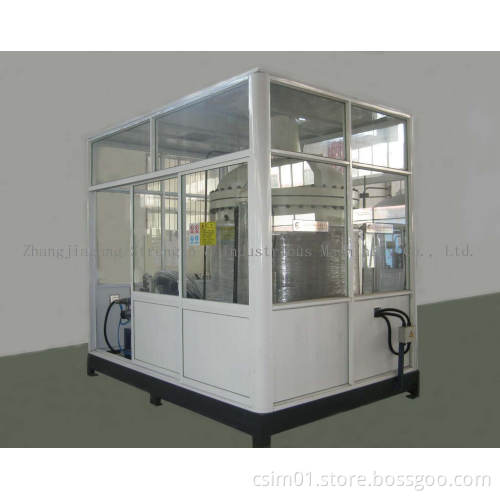

PMS ST1500 polyol/cyclopentane storage and feeding system

This system is used to storage and feed to the polyol/cyclopentane.

It is suitable in the continuous production pattern, may feed the foaming production line continues with the component material automatically.

Main Technical Parameters:

* Polyol/cyclopentane container unit,

@ Effective volume: 1500L;
@ Material: Carbon steel,
@ Working pressure max. 0.60Mpa;
@ With safety valve;
@ Agitator with mechanical sealing or no leaking magnetic coupling;
@ With pressure switch nitrogen decompressor,
@ Non-return valve on the filling port;

@ Magnetic liquid level meter: Visual level with alarm sensors for
@ Heat exchanger: Pipe-type heat exchanger installed outside the tank.
@ Temperature probe,
@ Double walled structure, temperature insulation out of surface of the tank;
* Double screw reciprocating /feeding pump
@The flow capacity: 60L/min.,
@Main motor power: 7.5kw

* Water supply required: Processed running water, flow capacity: 300L/min. Brings R1the ball valve;
* The nitrogen gas supply required (if needs): 0.7 Mpa, flow capacity: 600NL/min. With the 1.0Mpa pressure relief valve and R3/4 the ball valve;
* Power supply required: 3× 380V/50Hz± 10% or as customers local condition
* Control voltage: AC110V/DC24V;

Explosion-proof measures on the machine:

* Enclosure and gas-exhausting system for the units of polyol /cyclopentane;
* The flammable gas detecting and monitoring system;
* Nitrogen gas pressurization for the container;
* Ex type of the motors, valves and relevant electric elements;
* Grounding;
* Leakage monitoring and control;
