Aluminum Honeycomb Core for Transportation Equipment Industry
- Payment Type:
- L/C, T/T, D/P
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou, China |
|---|---|
| Payment Type: | L/C, T/T, D/P |
Product Description
Product Description
Aluminum honeycomb core:
1. Aluminum foil: 0.03-0.1mm
2. Core's cell size: 2-35mm
3. Thickness: As request
4, Honeycomb shape

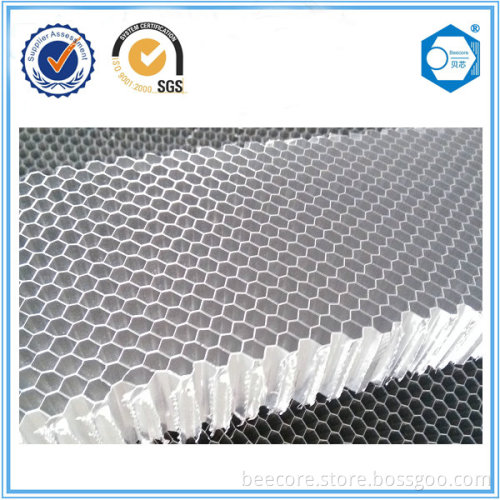

Aluminum honeycomb core
Description:
The aluminium honeycomb core is composed by multi layer aluminium sheets cut from a coil. It has even and smooth surface, and suitable for adhering to high grade plate as well as other composite materials. It is also a kind of lightweight core material which offering excellent strength and corrosion resistance for industrial applicaions at low cost.
Features:
Applying temperature up to 175° C;
High themal conductivity;
Flame resistant;
Excellent moisture and corrossion resistance;
Fungi resistant;
High strength to weight ratio;
Good flatness;
Excellent bonding strength.
Supplied form:
Expanded or unexpanded;
Perforated or unperforated;
Full blocks or cut slices.
1. Aluminum foil: 0.03-0.1mm
2. Core's cell size: 2-35mm
3. Thickness: As request
4, Honeycomb shape
Aluminum honeycomb core
Description:
The aluminium honeycomb core is composed by multi layer aluminium sheets cut from a coil. It has even and smooth surface, and suitable for adhering to high grade plate as well as other composite materials. It is also a kind of lightweight core material which offering excellent strength and corrosion resistance for industrial applicaions at low cost.
Features:
Applying temperature up to 175° C;
High themal conductivity;
Flame resistant;
Excellent moisture and corrossion resistance;
Fungi resistant;
High strength to weight ratio;
Good flatness;
Excellent bonding strength.
Supplied form:
Expanded or unexpanded;
Perforated or unperforated;
Full blocks or cut slices.
| Aluminum alloy | A1101,A3003,A5052 |
| Foil thickness | 0.04,0.05,0.06,0.07,0.08,0.1,0.2 |
| Core's cell size | 1-30mmm |
| Max width of aluminum foil | 1600mm |
| Specification of Normal Aluminum Honeycomb Core | |||||||||
| Side length (mm) | a=4 | a=5 | a=6 | a=7.5 | a=10 | a=12 | a=15 | a=20 | a=30 |
| Cell size (inch) | 1/4 | 1/3 | 3/8 | 1/2 | 3/4 | 4/5 | 1 | 1 | 2 |
| Expand maxi dimension (long x width) (mm) | 1800 x 3100 | 1800 x 4000 | 1800 x 4600 | 1800 x 6000 | 1800 x 7500 | 1800 x 9000 | 1800 x 12000 | 1800 x 15000 | 1800 x 20000 |
| Thickness of aluminum coil (mm) | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 | 0.04 – 0.07 |
