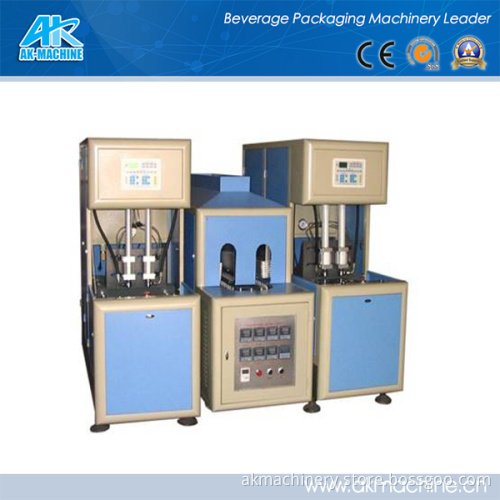

Semi Automatic Pet Bottle Blowing Machine (AK-31)

Feature

Semi automatic PET bottle blowing machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles...
1, New double crank four pull-up bar clamping structure, cross balance fixed slide
2, Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding
3, Advanced gas path design, single, dual air intake can be; Low-pressure mechanical clamping, sealing, stretching; High pressure blowing molding
4, Programmable PLC controller automatically control, microcomputer touch screen convenient operation
5, Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.

Specification:

AK-31 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.
