4D Color Doppler Ultrasound Scanner

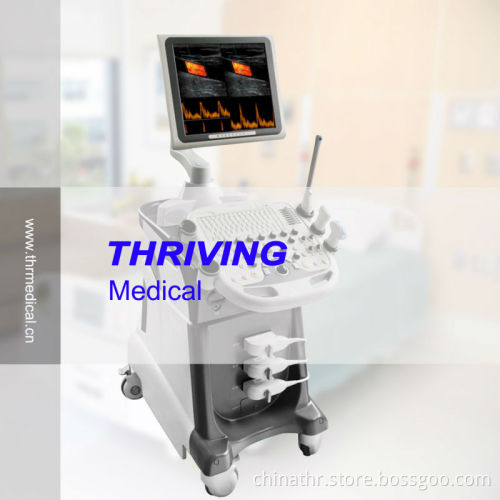

THR-CD2100 4D color doppler ultrasound scanner

Ultrasound scanner
1.3D-PW
2. Sound optimization
3. Coded excitation
4. Auto IMT

THR-CD2100 FULL CLINICAL APPLICATION:
3D/4D imaging;
Strain Imaging;
Free-hand 3D;
3D-PW;
Anatomic M Mode;
Trapezoid Imaging;
WFOV;
Color Flow Imaging;
CW;
Power/Directional Power Doppler;
Auto IMT Measurement;
TDI;
THI;
Real Time Triplex;

Clinic Applications:
Supports linear, convex, phased array, endocavity, and 4D probes for:
OB, GYN, small parts, radiology, urinary/prostate, vascular, cardiac, abdominal, breast, peripheral vessels, superficial, rectal, pediatric, vaginal, and rectal

Image Modes:
B mode, M mode, Color Doppler (CFM), Doppler Spectrum Mode (PWD), Power Doppler Mode

Measurements & Calculations:
OB: HR, Velocity(D), Accel, Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Velocity(C), CRL, BPD, HC, AC, FL, OFD, HL, GS, Radius, Ulna, Tibia, Fibula, N. B. L, AFI…

Radiology: Peak Sys, Peak Dys, Mean, Time, HR, Velocity(D), Accel, Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Flow Velocity, D Flow, T Flow, Lt. Kidney, Rt. Kidney, IMT…...

Cardiac: AR, LVOP, TR, PUL. VALVE, PUL. VEIN, RV, BF, LVET, Time, HR, Auto Trace, Point Trace, LAD/AOD, MPAD, RVEDd, RVEDs, LVM, BSA(Input), HR(Input)...

Vascular: VFD, VFA, Time, HR, Velocity(D), Accel, Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Velocity(C), IMT, %DST, %AST, Dist, Area, Ellipse, Cross, Angle, Dist Ratio...
GYN: Uterine, Cervix, UT_L/CX_L, Lt. Ovary, Rt. Ovary, Endo L, DO Follicle, Uterus Body, Dist, Area, Ellipse, Cross, Angle, Dist Ratio, Para, M Trace(L), M Trace(H)...

Small Part: HR, Accel, Velocity(D), Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Dist, Rt. Thyroid, Lt. Thyroid, Area, Ellipse, Angle, Para, Dist Ratio, Diameter...

Urology: Lt. AG, Lt. AG, Lt. Testicle, Lt. Testicle, Lt. Sperm, Lt. Sperm, Rud. Urine, Prostate, Auto Trace, Point Trace, Accel, HR, RI, SI, Diameter, Joint Angle...

IMAGE FEATURES:
1) Display
Display Depth: Up to 35cm,
Probe dependent: Convex: 18 steps, Linear: 14 steps
Display Gray Levels: 256; Continuous variable contrast and frame rate up to 586/s
Display Format: B, 2B, 4B, M, B/D, B/M, B/C, B/C/MC, B/D, B/P, B/C/D
Image Orientation: Left/right B mode reversal and up/down image invert; 90, 1800 rotation
Magnification: Zoom with pan capability in real-time or freeze B, C and M mode
Annotation: Allows the user to annotate anywhere on the image with pre-defined annotation list and anatomical body marks
Screen Display: Display of all patient and exam related imaging parameters, and on-screen documentation of image parameters in single / dual display modes

2)3D Ultrasound
Offer freehand 3-D ultrasound with user training tools
Offer 3-D viewing and editing slices to remove unwanted tissue structure from arbitrary angles
Offer 3-D display in B-mode and Color Doppler simultaneously
3D Multi-gate Spectrum Doppler
3) 4D package(including Volume probe, 4D software, 4D hardware)
4) Image Review
CINE Review: Variable speed motion review and frame-by-frame review Storage only limited by internal memory of the system board
Standard: 1, 024 B-Mode frame and 170 seconds M-Mode data
Standard: 520 color frames and 380 seconds Doppler Spectrum
Post Procession and measurements

5) Image Management
Storage only limited by hard disk of the system board
Standard: 160 GB hard disk drive for local image storing
CD-RW/DVD Drive as removable read, write, archive and storage, USB, S-Video, VGA
Standard: 2, 000 Images w/ TIF format on CD
DICOM & PACs Compatible
