16mm-25mm Four out PVC Conduit Pipe Production Line

Description of  PVC electrical conduit pipe production line:
PVC pipe extruder machine / PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of  the  UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.


Characteristics of extrusion line for PVC electrical conduit:
1. one die four output, it greatly increase the productivity, meantime, it reduce the cost of machine, power consumption, save space of workshop
2. Speed of extruding, haul off are controlled by variable frequency inverter, stepless adjusting speed and save power consumption
3. Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime.
4. Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.


Equipment Composition:

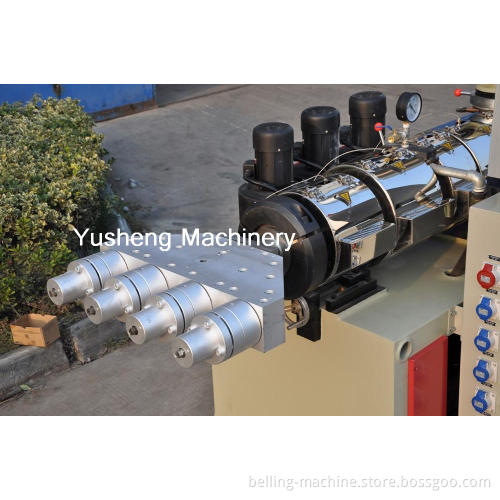

SJZ-65/132 conical twin screw extruder+four-outlet mould+four-outlet downstream, mainly used for PVC four-outlet pipe production.

Features:

1) Producing PVC four-outlet pipe diameter range:16-25mm

2) Production with four-outlet at the same time. It takes full advantage of the extruder capacity, and greatly improves the production effciency.

3) Excellent combination of automatic separate control of four-outlet of hauler&cutter with four-outlet calibration tank, which makes the operation more flexible and convenient.

4) Separate hauling and cutting for each pipe outlet; it effectively reduces the percentage of waste pipes

5) Integrated hauler and cutter overall design, which achieves the perfect combination of the quality and appearance, and energy saving evidently

Machines condiguration:
