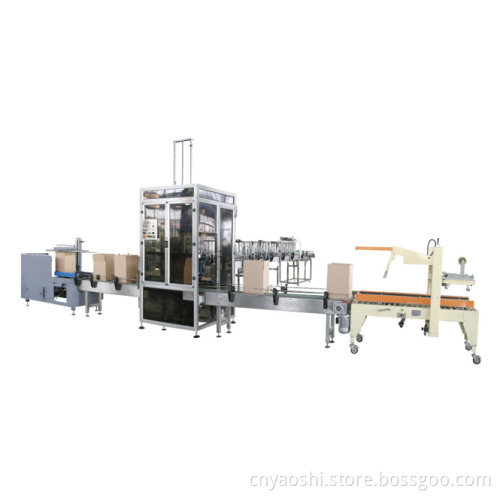

Carton Package System

Carton package system
1,  Carton opening machine
The machine is mainly used for the carton open for the carton box packing production line, it is use for the glass bottle and PET or PP or PE bottle packing into carton box.
Main Technical Parameter:
Carton size(LxWxH): 200-500 x 150-420 x 100-500 mm
Table height(min): 650 mm
Speed: 200-720 ctns/hr
Power: 220/380 V single phase, 50/60 Hz
Air compress: 5-6 kg/cm2 150 Ne/min
Adhesive tape: 48mm & 75mm
Weight: 150 kg

2,  Automatic case packer
The case packer drive with servo motor system is designed by Italy and German, operated with automatic. It is small, beautiful, stable, economical and convenient. The loading part is drive with non-pole cylinder. It is stable, exactable and high adjust. The gripper drive with servo motor is exactable, stable and safe.
Main Technical Parameter:
Power: AC 3P 380_400V, 50Hz; 3.5 kw
Control voltage: AC220V
Air source pressure: P>0.8 Mpa; Normal> 1m3
Capacity: 500 case/hr
Weight: 600 kg
3,  Automatic folding style carton sealing machine
Automatic folding style carton sealing machine is the flowing line equipment which is a bulk of cartons is sealed automatically and sealing the upwards and downwards adhesive tape. Operator and repairing worker should observe the operation notices strictly, and ensure the normal safety running of the equipments.
Main Technical Parameter:
Sealing carton ability: 18-25 cartons/min; 1500 cartons/hr(max);
Power: Voltage: 220V; 300W
Air source pressure: 0.5 Mpa (5kgf/cm2)
Weight: 200 kg
Carton size (LxWxH): 200-500 x 220-420 x 180-500 mm
