Activated Carbon Filter

Activated Carbon Filter
Purpose:
The filter is designed for drinking water treatment. It can clear away color and foreign substance from the water and remove heavy metal such as mercury, lead, zinc, iron, manganese and chromium, and hydride, sulphide, remanant chloride etc. It is an ideal machine for drinking water, foodstuff, beverage and pharmaceutical industries.
Work principle:
It is compose with active carbon layer and supporting layer. Active carbon has good holes. The holes has high adsorb ability. Because of this, it is used in many industry. After working for a long time, active adsorb many material to tend to a saturation state. So, it we should change active carbon or make it regenerate.
The supporting layer is used in preventing the loss of active carbon from the equipment, it is also helpful to make water equality\
Technic parameter:
Work pressure: 0.25Mpa
Filter speed: 11-15m3
Back flushing time: 4-10min
Regenerate time: 15-30min
Inlet water tuibidity: Outlet water ruibidity: Work temperature: 4-50
Wipe off rate: 90-96%
Back flushing intension: 12-18L/S. M2
Resistance loss: Design prssure: 0.6Mpa

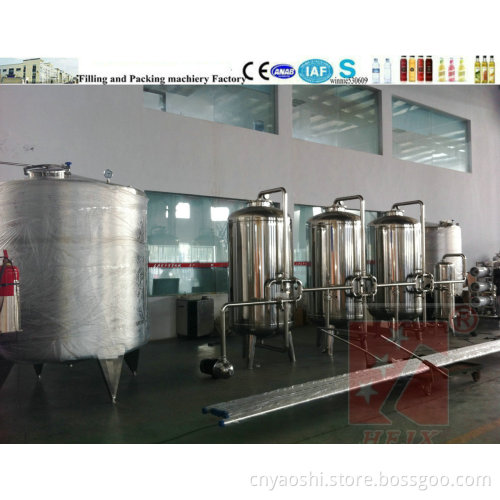

The complete line need:
Raw water tank 3T
Pump 8-10
Multimedium filter JDL-5
Active carbon filter HML-5
Sodium-ion exchanger SNJ-5
Salt water pump WB-10
Salt water tank
RO Reverse Osmosis RO-3
Precision filter JML-6
Zone Sterilization O3-30
Pipes and Valves
Bringes Cable, wire tank
Wooden packed Free
