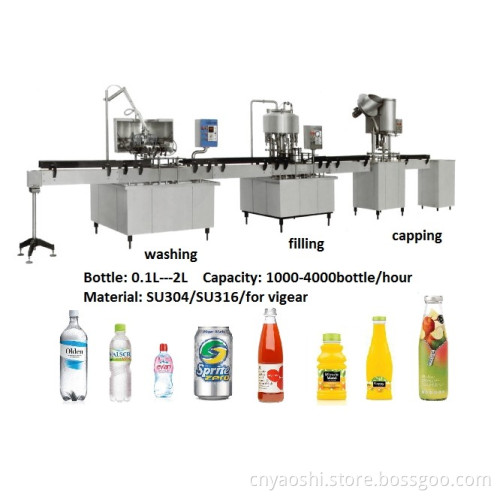

Mineral water, pure water, non-gas wine drink bottling plant
Pet bottle and glass bottle
Screw capping and press capping cap
Capacity: 2000 bottles per hour
SUS 304 or 316 materials
PLC controller
Suitable for the different types bottle 200ml-2000ml

Feeding conveyor and working table:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle

Washing machine
1. Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. Spraying nozzle could reach all the parts of the bottle, save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers, The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.


Filler
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3. Filling precision ≤ ± 2mm
4. Garvity filling method
5. Normal temperature
6. No linking

The star wheels drive the bottles always "by the body" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.



Capping part
1. PCO, plastic cap, metal cap, aluminum cap
2. No bottle no capping
3. Two sensor to check, PLC control
4. No full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding

Metal cap or Plastic cap will be send to the capping position by the cap unscramble.
After the filled bottle across the sensor, the sensor will send the signal to PLC, and the cap unscramble will start to work automatically
