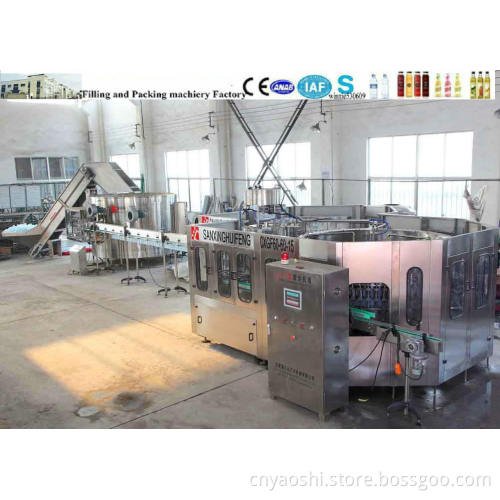

Water Bottling Plant, Automatic Water Production Line, Bottling Plant (CXGF60-60-15)

Water bottling plant,Automatic Water production line,bottling plant
Pet bottle and glass bottle
Screw capping and press capping cap
Capacity from 1000-25000 bottles per hour
Lubrication system
SUS 304 or 316 materials
PLC controller
Suitable for the different types bottle 200ml-2000ml
lifting device to change the bottle


Feeding conveyor:
1. Easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle

Washing part
Inverter clamp to pick up the bottles by catch the bottle neck
SUS304 stainless steel
spraying nozzle could reach all the parts of the bottle ,save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers ,The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

Filler
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision ≤±2mm
4. Garvity filling method
5. Normal temperature
6. No linking

Capping part
PCO ,plastic cap, metal cap, aluminum cap
no bottle no capping
two sensor to check, PLC control
no full no capping

Lamp checker
Clearly to see the filled bottle

Electrical apparatus
PLC/ transducer/ touch screen: siemens
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack
