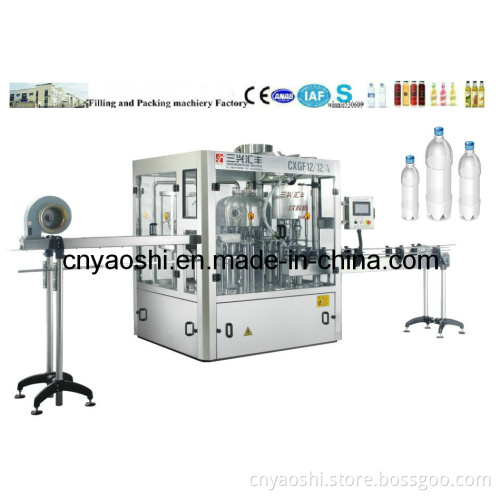

Water Bottling Plant, Drinking Water Plant, Mineral Water Plant

Pet bottled water line, water bottling line

Mineral water, pure water, non-gas wine drink bottling plant
Pet bottle and glass bottle
Screw capping and press capping cap
Capacity from 1000-25000 bottles per hour
Lubrication system
SUS 304 or 316 materials
PLC controller
Suitable for the different types bottle 200ml-2000ml

Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle

Washing part
1. Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. Spraying nozzle could reach all the parts of the bottle, save the washing water

Filler
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3. Filling precision ≤±2mm
4. Garvity filling method
5. Normal temperature
6. No linking

The star wheels drive the bottles always "by the body" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.

Capping part
1. PCO, plastic cap, metal cap, aluminum cap
2. No bottle no capping
3. Two sensor to check, PLC control
4. No full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding

Metal cap or Plastic cap will be send to the capping position by the cap unscramble.
After the filled bottle across the sensor, the sensor will send the signal to PLC, and the cap unscramble will start to work automatically

Lamp checker
Clearly to see the filled bottle

Electrical apparatus
PLC/ transducer/ touch screen: Siemens
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack
