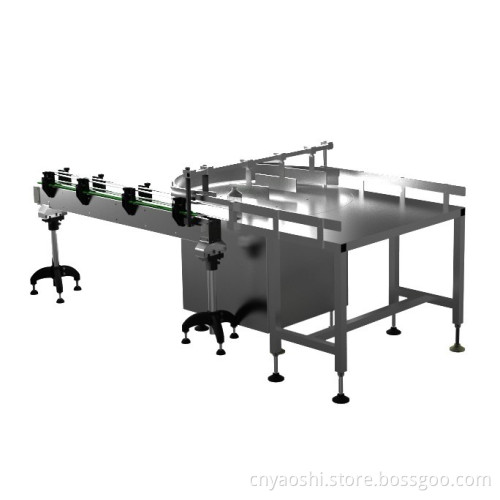

Simple Bottle Unscramble Machine

Major Characteristic
The turnplate of this machine adopts adjustable inverter of limitless speed to rotate, making all the bottles enter into conveyor belt in order under the rotary tangential force, reduce labor, and raise production efficiency. This machine can work when the power is on, easily operating. It can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food, and chemical industris etc. It is an ideal equipment for small, mediumand large factory.
Technical Parameter
1. Machine dimension (L× W× H): 1700mm× 1300mm× 1350mm
2. Weight of machine: 300KGS
3. Suitable diameter of bottles: φ 40mm~φ 100mm
4. Diameter of turntable: Φ1200mm
5. Power supply: AC 220V; 50Hz(or according to customer's special requirement)
6. Power: 1.5kW
7. Production capacity: 60-120 Bottles / Minute
