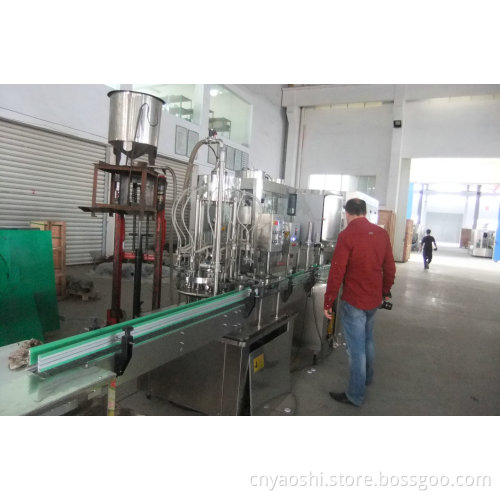

Small Bottle Liquid Filling Machinery

Negative filling machine
The series equipment is used in production liquor, wine, soy vinegar etc.
Pet bottle and glass bottle
Screw capping and press capping cap
Capacity from 1000-25000 bottles per hour
SUS 304 or 316 materials
Suitable for the different types bottle 200ml-2000ml

Filling part
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3. Filling precision ≤ ± 2mm
4. Negative pressure filling valve
5. Normal temperature
6. No dropping
Because the liquid is corrosive, so the filling part should not use the, the better we use the chimerical rubber as the filling pipe.
The liquid level of liquid vat keeps constancy liquid level and 1 air pressure under automatic controlling of liquid inlet valve. When the liquid valve liquid-inlet perch entering bottle, after sealing seals the bottle mouth, the air suction will start and setup negative pressure (vacuum), at this time, the liquid in liquid vat entering into bottle under function of pressure error. When the liquid level surpass liquid perch air suction hole, the pressure error will disappear, and air suction out stops, the filling finish.



Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack
