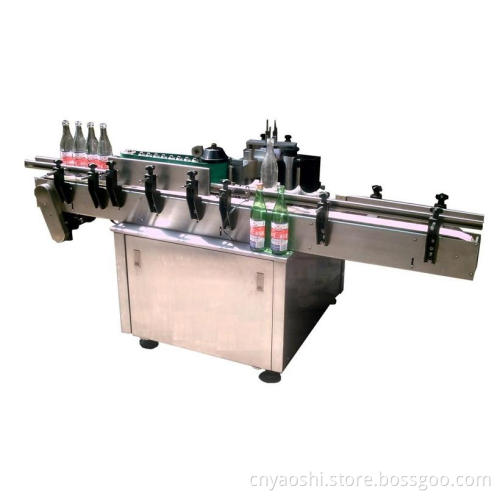

Fully-Automatically Straight-Line Glue Labeling Machine

1. Based on screw bottle entering bottles moving are steadier.
2. Label box can be controlled to satisfy different labeling request.
3. The size of label box can be changed according to the different label size. The operation is convenient and easy.
4. Uses the glue pump and the glue can be used circularly. Quantity of flowing glue also can be changed to satisfy different labeling request.
5. Paper label make a low cost.

Working elements:
Bottles enter the conveyer belt of machine and are driven to enter the labeling area with the setting distance. Photoelectricity signal will be send to PLC if the bottle is checked. After that the label will be send to the Doctor Roll and stick on the bottle. Then the bottle will enter convolution area and bottle is convoluted to make the label stick well. One labeling has been completed
DRIVE Shift motor driven
BOTTLE DIAMETER 40-110mm
BOTTLE HEIGHT 60_450mm
LABELING SPEED 40-130PCS/min
LABELSIZE Width: 20-220mm Length: 80-370mm
PRECISION ± 1mm
MACHINE SIZE 2400*824*1100mm
WEIGHT 750kg
