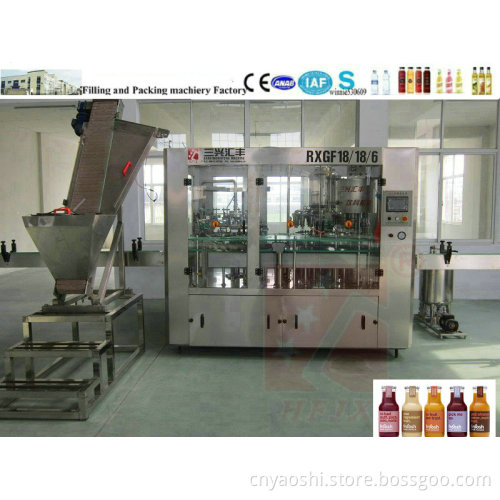

Glass Bottle Juice Filling Plant/Fresh Squeezed Juice Filling Machine (3 in 1)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Payment Type:	L/C, T/T

Product Description

Glass bottle juice filling plant/fresh squeezed juice filling machine (3 in 1)
Pet bottle and glass bottle
Screw capping and press capping cap
Capacity from 1000-25000 bottles per hour
Lubrication system
SUS 304 or 316 materials
PLC controller
Suitable for the different types bottle 200ml-2000ml

Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle

Washing part
1.       Inverter clamp to pick up the bottles by catch the bottle neck
2.       SUS304 stainless steel
3.       spraying nozzle could reach all the parts of the bottle ,save the washing water
.
Glass Bottle Juice Filling Plant/Fresh Squeezed Juice Filling Machine (3 in 1)

Filling parts
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision ≤±2mm
4. Vacuum filling method
5. filling temperature:85-95
6. No dropping

Capping parts
1.metal cap
2.no bottle no capping
3.two sensor to check, PLC control
4.no full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding

Glass Bottle Juice Filling Plant/Fresh Squeezed Juice Filling Machine (3 in 1)

Lamp checker
Clearly to see the filled bottle

Vacuum tank and pump
Because the liquid contains the foam , so not only the valve has the degas feature, we also need the fit the vacuum pump and tank, to suck all the foam from the liquid , and send to the vacuum tank through the vacuum pump

Electrical apparatus
PLC/ transducer/ touch screen: siemens
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack

Glass Bottle Juice Filling Plant/Fresh Squeezed Juice Filling Machine (3 in 1)
