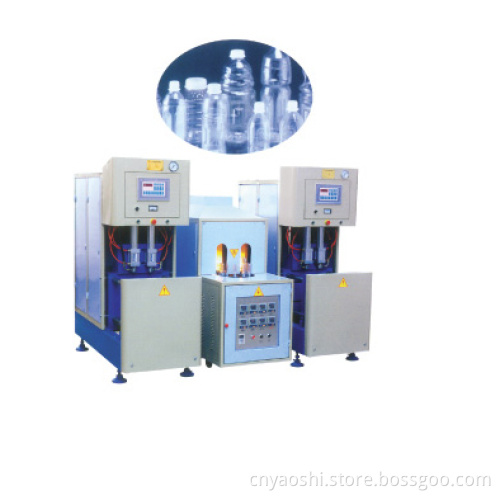

YS-2 Semiautomatic High Temperature Blowing Bottle Machine

Technique Parameter of blow molding machine:
Main parameter:
Model: YS-B
Product material: PET
Volume: 0.1L-2L
Container: Theoretical output: 1500/BPH/500ml
1200BPH/750ml
1, 000BPH/1000ml
800BPH/1500m
Preform length: 15mm-350mm
Preform inner diameter: φ 5mm-38mm
Moulding: Max. Mould plate Dimension (L x W): 350x380mm
Max. Mould thickness: 180mm Clamping force: 45KN
Mould opening stroke: 16mm
Machine size and weight: Main machine (L x W x H): 160x60x161cm
Main machine weight: 500Kg
Heater (L x W x H): 187x63x145cm
Heater weight: 250Kg
Power: 17.5kw

YS-B semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.

The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.

The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.
