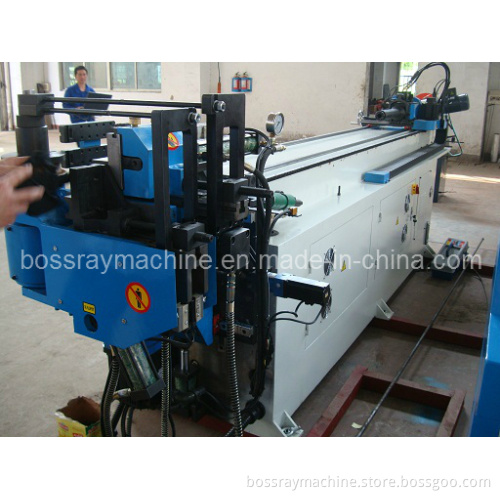

CNC Tubing Bender Sb-38CNC-4A

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang, China
Payment Type:	L/C, T/T

Product Description

Standard features --

CNC TUBING BENDER 1 1/2 inches
Bend-arm (C-axis) by servo motor
Clamp die by hydraulic
Pressure die by hydraulic
Carriage (Y-axis) by servo motor
Collet (B-axis): Rotation by servo motor, grip by hydraulic
Machines head up down and left right move by hydraulic
Anticipated mandrel retraction unit
Standing pedestal, serves emergency stop and remote control
PLC controller with touch-screen display, capable of parameter control, repeat feeding and memory storage up to 1000 parts program
Air-cooling system
CE mark
Easy Operation
Bending Capacity: 38*2mm
PLC, servomotor: Japan Mitsubishi
High Accuracy

Technical Parameter
1. Bending Capacity: 38*2mm
2. Bending Radius Region: 20-200mm DOUBLE STACK TOOLINGS
3. Standard One Time Feeding Length(Can be customized): 2000mm
4. Feeding Mode: Servo motor clamp Feeding
5. Controlling System: IPC
6. Precision: +/- 0.1
7. Max. Bending Angle: 190°
8. Max. Pressure: 16Mpa
9. Machine Dimension: 4400*900*1350
10. Machine Weight: 2200kgs

Standard Configuration
1. Hydraulic Motor: Taiwan Guangyuan
2. Hydraulic Pump: Japan Yuken
3. Hydraulic Valve: Japan Yuken
4. Cylinder: Shanghai Jingsheng
5. PLC: Japan Mitsubishi
6. Servo Motor: Japan Mitsubishi
7. Gear Reducer: Taiwan PHT
8. Angle controller: Japan Nemicon
9. Guide Linear: Taiwan PMI
10. Other Electric Parts: SCHNEIDER
