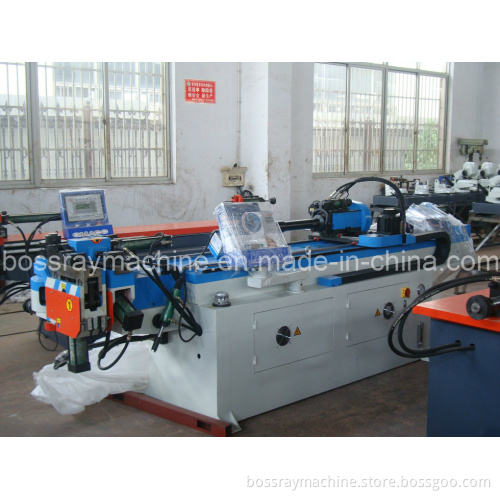

High Quality Pipe Bending Machines

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang, China
Payment Type:	T/T

Product Description

Standard features --

Bend-arm (C-axis) by hydraulic
Clamp die by hydraulic
Pressure die by hydraulic
Carriage (Y-axis) by servo motor
Collet (B-axis): Rotation by servo motor, grip by hydraulic
Anticipated mandrel retraction unit
Standing pedestal, serves emergency stop and remote control
PLC controller with touch-screen display, capable of parameter control, repeat feeding and memory storage up to 1000 parts program
Air-cooling system
CE mark
Easy Operation
Bending Capacity: 38*2mm
PLC, servomotor: Japan Mitsubishi
High Accuracy

Technical Parameter
1. Bending Capacity: 38*2mm
2. Bending Radius Region: 20-200mm
3. Standard One Time Feeding Length(Can be customized): 2000mm
4. Feeding Mode: Manual Feeding
5. Controlling System: PLC
6. Precision: +/- 0.1
7. Max. Bending Angle: 190°
8. Max. Pressure: 16Mpa
9. Machine Dimension: 4000*700*1300
10. Machine Weight: 1500kgs

Standard Configuration
1. Hydraulic Motor: Taiwan Guangyuan
2. Hydraulic Pump: Taiwan HYDROMAX or Japan Yuken
3. Hydraulic Valve: Japan Yuken
4. Cylinder: Shanghai Jingsheng
5. PLC: Japan Mitsubishi
6. Servo Motor: Japan Mitsubishi
7. Gear Reducer: Taiwan PHT
8. Angle controller: Japan Nemicon
9. Guide Linear: Taiwan PMI
10. Other Electric Parts: SCHNEIDER, Omron, Taiwan SHILIN
