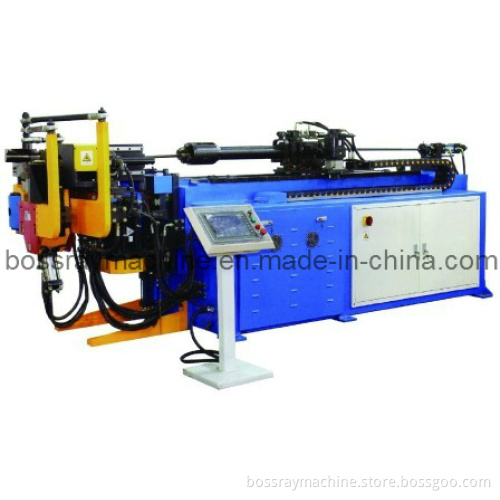

Automatic CNC Pipe Bending Machines (SB-75CNC)

Standard features --
Bend-arm (C-axis) by hydraulic
Clamp die by hydraulic
Pressure die by hydraulic
Carriage (Y-axis) by servo motor
Collet (B-axis): Rotation by servo motor, grip by hydraulic
Anticipated mandrel retraction unit
Standing pedestal, serves emergency stop and remote control
PLC controller with touch-screen display, capable of parameter control, repeat feeding and memory storage up to 1000 parts program
Air-cooling system
CE mark
1, Applicable tube material: Carbons steel, mild steel, soft steel, stainless steel, aluminum, Alloy, copper, brass etc.
2, Applicable tube shape: Tube, solid bar, square, rectangle, oval, profile etc.
3, Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.
4, Y, B, C three coordinates of motion under precision control by industrial computer Realizing full-auto mandrel on or mandrel off rapid bending.
5, Equipped with hydraulic-operated clamping tube, encoder-controlled Bending angle with precision more or less 0.1 degree.
6, About 200 programs can be inputted into PLC, then show on dialogue-style Operation touch screen, easy to learn and understand.
7, Various Touch screen language are available for choice as per request.
8, Adoption of hydraulic valve and oil way board can control actions individually to prolong The lifespan of hydraulic parts.
9, Guiding module has auxiliary pushing function and at the same time it possesses Reiteration and entering repeat functions that can make the guiding module length shorten.

10, Counter function can accurately count work piece's quantity and save data whether in power-on or power-off situations.
