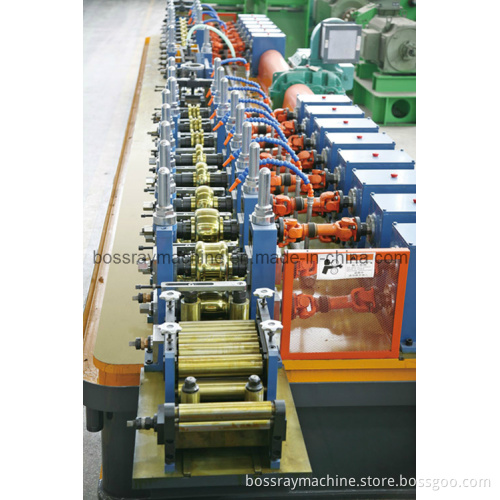

High Frequency ERW Pipe Mill China

Specifications
Capacity:
1, Pipe ID: 8mm-32mm
2, Thickness: 0.4mm-1.5mm
3, Speed: 100m/min
Double-head uncoiler
Briefing: Rotary type to change coils easilywith a pneumatic brake
Parameters:
(1)The max. Weight of coil: 700kg-800kg
(2)The inside diameter of coil: 300-350mm
(3)The max. Outside diameter of coil: 1200mm
(4)The max. Width of coil: 120mm
Main drive
1. The main motor is driven by model
Z4-180-11, 37kw DC motor
2. Model ZLY160 speed reducer, the ratio is 5.4: 1
3. Imported OL DC control device to drag
Material collecting cage
1. Material: Made of angle and channel iron
2. Feeding speed: ≥ 200m/min
3. Collecting capacity: ≥ 400m
Width adjustment
Range: 22-110mm
Rolls for collecting material
1. Material: Gcr15
2. Feeding rolls 115mm, 2pieces
3. Motor: 2.2kw, 1set
Computer-controlled flying saw
A. Power of automatic controller: 7.5kw
B. Automatic tracking machine
1. The max. Diameter to be cut: Φ 35mm
2. The range of cutting length: 4m-7m
3. The max. Wall thickness to be cut: 2.0mm
C. Type: Round metal saw blade: Φ 300mm× Φ 30mm× 3.0mm
D. Power of the saw: 4kw
E. Accuracy of the cutting length: Within± 0.3mm
Discharging table
Conveyed on the rolling way, reversed pneumatically
High-frequency
1. Model: GP100-0.6-H
2. Input power: 3P, 380V, 50Hz
3. Output power: 100kw
4. Control mode of output power: Regulated by microprocessor
5. High voltage rectifier: 15A
6. High voltage transformer: 3, 380V, 180kVA
7. Electronic tube: FU-911S
8. Transformer of the electronic tube shaking: 8V-AC
9. Anode hydraulic pipe of electronic tube: Polythenereinforcing tube
10. Capacitor: CCG81-1000P-20KV
