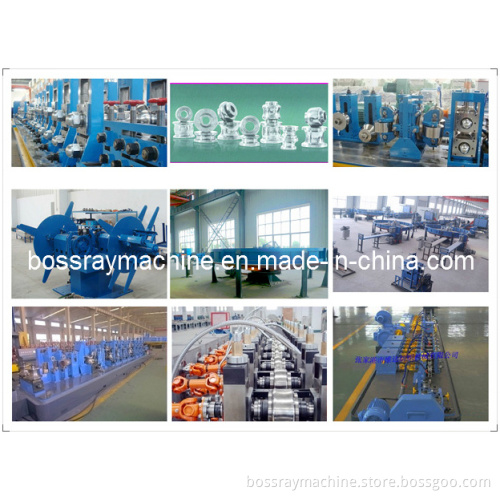

Frequency Tube Welding Production Line

Specifications
This equipment is specially used for producing16-63mm, thickness: 1.0-3.0mm high-frequency straight seam welded pipe
1.1 Applicable material:
(1) Hot or cold-rolled steel strip
(2) Material: Low-carbon steel, low alloy steels≤ 345Mpa, b≤ 610Mpa
(3) The thickness of steel strip: 1.0-3.0mm
(4) The width of steel strip: 50-200mm
(5) I. D. Of steel coil: 400-550mm
(6) O. D. Of steel coil: 800-1200mm
(7) Maximum weight coil: 1500kgs made to order
1.2 Dimension range of processing steel pipe:
(1) O. D.: 16-63mm
(2) Wall thickness: 1.0-3.0mm(square pipe and special-shaped pipe≤ 2.0mm)
(3) Length: 4-8m
1.3 Product (steel pipe) process flow:
Raw material (steel coil) decoiling shearing and welding material accumulating non-power leveling forming milling high-frequency welding removing burrs outside of weld seam cooling sizing rough straightening fixed length cutting finishing pipe
1.4 Milling speed: 20-100m/min
1.5 High-frequency equipment power: 200 KW
1.6 Advised users necessary accessories (only for reference):
(1) Mechanical equipment site: 50m X 4.5m (length X width)
(2) Electrical equipment site: 5m X 4m (length X width)
(3) Machine unit foundation base (See suppliers base drawing)
(4) Two sets of 10-ton overhead crane
(5) Power supply:
A. Equipment motor: 75KW+11KW+5KW= 91 KW
B. High-frequency motor: 200 KW
