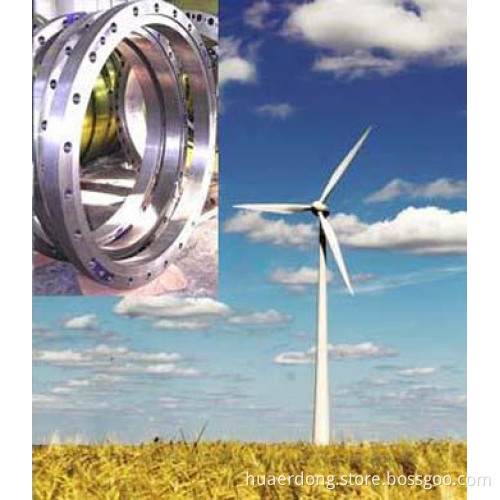

Wind Power Tower Flange, Wind Turbine Tower Flange (G005)

Wind Power Tower Flange, Wind Turbine Tower Flange (G005)

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang (China)
Payment Type:	L/C, T/T, D/P

Product Description

Wind Turbine Tower Flange S355NL, S355J2

Wind Power Tower Flange, Wind Turbine Tower Flange (G005)

Raw Material (Using now): S355NL+Z25, S355J2+Z25, S355K2+N, for large wind tower flanges, hot rolled flanges, and seamless rolled rings within wind energy.
Round billet, ø600mm to ø1000mm, Height: 1000mm to 1600mm

Material Supplier: Jiangyin Xingcheng Special Steel Co., Ltd (Customer nominated material supply factory for wind tower flange)

UT Test: EN10228-2, 3, Class 2, Class 3 for seamless rolled flanges and forged flanges
EN10228 Class 3 for steel bars bended flanges

Main Equipment for Manufacturing: 7000-Tons Hydraulic Press, Ring Roller (Max OD: 5 meters), 5 meters Verical Lathes, Speed Drilling Machines.

Production Capacity: 60 PCS of Large diameter flanges Monthly, Diameter Scope: up to 5000mm

Heat treatment: Normalizing

Quality Control: According to ISO9001: 2008

Payment: 30% deposit

Exporting Port: Shanghai

Wind Power Tower Flange, Wind Turbine Tower Flange (G005)
