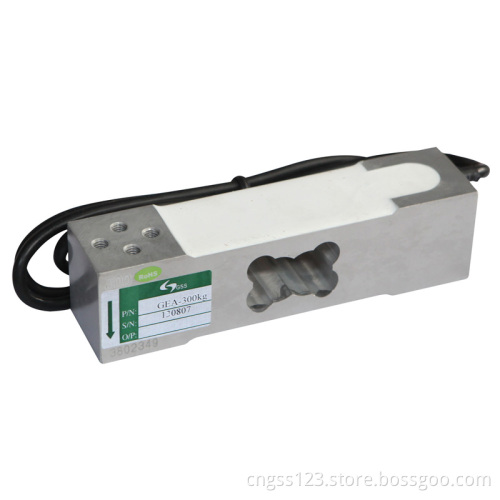

Platform Scale Load Cell

Rated Capacities60, 100, 150, 200, 250, 300, 350, 500(kg)
Rated Output2.0 mV/V± 5%
Non-linearity0.02% R. O.
Hysteresis0.02% R. O.
Repeatability0.02% R. O.
Creep(30min)0.02% R. O.
Temperature Effect On Output0.002%R. O. /º C
Temperature Effect On Zero0.003%R. O. /º C
Zero Balance± 0.0200 mV/V
Input Impedance390± 15 Ω ; 410± 15 Ω
Output Impedance350± 5 Ω
Insulation Impedance≥ 5000MΩ /(50VDC)
Safe Overload150% R. O.
Ultimate Overload200% R. O.
Operating Temperature Range-20~60 º C
Recommended Excitation5~12 VDC
Maximum Excitation15 VDC
ConstructionAluminum Alloy; Steel Alloy
Protection ClassIP66 / IP67
Cableφ 5× 1.5 m
Platform Size350× 450 mm
Mode of ConnectionRed(EXC+), Black(EXC-), Green(SIG+), White(SIG-)
