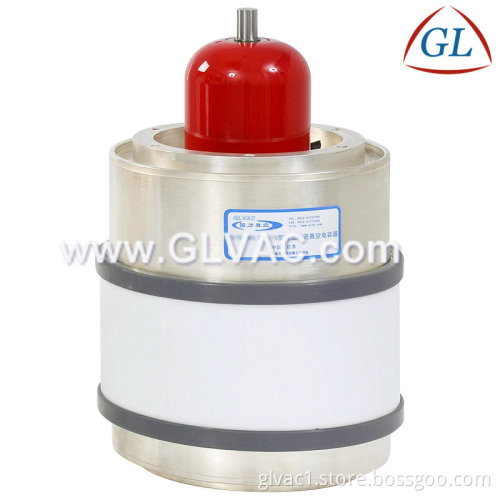

Variable Vacuum Capacitors (CKTB250/35/220)
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu |
|---|---|
| Payment Type: | T/T |
Product Description
Product Description
Product Description
GLVAC vacuum capacitors use vacuum as dielectric with ceramic envelope, which have the following features: High voltage, Small size, High Q value, Stabilization capability, High reliability, Low price.
GLVAC also manufactures Ceramic HV Vacuum Relays, Ceramic Vacuum Interrupters, DC Contactors, High Power Hydrogen Thyrathon, Magnetron and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.
GLVAC also manufactures Ceramic HV Vacuum Relays, Ceramic Vacuum Interrupters, DC Contactors, High Power Hydrogen Thyrathon, Magnetron and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.
| Specification | |
| Model | CKTB250/35/220 |
| Capacitance(pF) | 10~250 |
| HF Peak Test Voltage (kV) | 50 |
| HF Peak Working Voltage (kV) | 35 |
| Maximum RF Current (RMS) (A | 220 |
| Maximum Operating Torque(N*m) | 1.5 |
| Turns | 50 |
| Diameter(mm) | 183 |
| Height (mm) | 302 |
