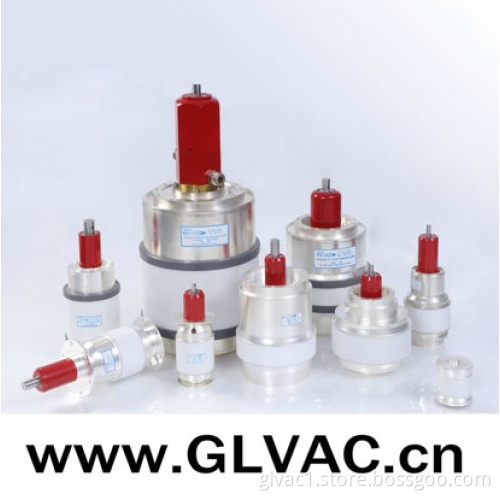

Variable Vacuum Capacitors

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Payment Type:	T/T

Product Description

GLVAC manufactures complete types of vacuum capacitors, includes variable capacitors, fixed capacitors, water cooling capacitors, which are widely used in Broadcast communication equipment, semiconductor, solar power, RF power, medical equipment, high frequency industry equipment, High-energy physics and so on.

GLVAC is a global leading manufacturer of vacuum products, with more than 40 years experience in vacuum and electric components. GLVAC gets GJB9001B-2009, ISO9001: 2008, TS16949, and UL certification.

GLVAC also manufactures Ceramic HV Vacuum Relays, Ceramic Vacuum Interrupters, DC Contactors, High Power Hydrogen Thyrathon, Magnetron and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.

GLVAC Model	Capacitance(pF)	HF Peak Test Voltage(kV)	HF Peak Working Voltage(kV)	Maximum RF Current (RMS)(A)	Diameter (mm)	Height (mm)
CKTB50/15/50	50	15	15	50	62	180
CKTB50/25/32	50	35	21	63	71.8	160
CKTB100/10/65	100	15	10	65	62	162
CKTB100/10/65(I)	100	15	10	65	62	162
CKTB100/15/60	100	21	15	60	88	219
CKTB110/7.5/50	110	10.5	7.5	50	62	188
CKTB120/10/60	120	15	10	60	88	219
CKTB150/10/65	150	15	10	65	62	168
CKTB150/10/65(I)	150	15	10	65	62	168
CKTB250/3.5/50	250	5	3.5	50	62	152.4
CKTB250/28/138	250	40	28	138	143	244
CKTB250/35/220	250	50	35	220	183	302 ± 5
CKTB400/5.5/80	400	7.5	5.5	80	87.4	190 ± 3
CKTB400/7.5/60	400	11	7.5	60	88	219
CKTB450/28/138	450	40	28	138	143	244
CKTB500/3.5/55	500	5	3.5	55	62	152.4
CKTB500/3.5/57	500	5	3	57	55	148.3
CKTB500/10/65	500	15	10	65	91	205 ± 2
CKTB500/10/67	500	15	9	67	86 ± 1	194 ± 1
CKTB500/10/67(I)	500	15	10	67	86	191
CKTB500/10/67(II)	500	15	10	67	86	191
CKTB500/10/67(III)	500	15	10	67	86	191
CKTB500/10/67(IV)	500	15	10	67	86	194
CKTB500/10/69	500	15	10	69	86	202
CKTB500/10/100(I)	500	15	10	100	86	202
CKTB 530/4/25	530	5.6	4	25	50 ± 1	124 ± 2
CKTB650/3.5/64	650	5	3	64	44.7	114
CKTB650/35/170	650	50	35	170	200	345
CKTB650/35/240	650	55	35	240	183	302 ± 5
CKTB750/25/170	750	35	25	170	200	343
CKTB750/25/220	750	40	25	220	183	297 ± 5
CKTB750/28/220	750	40	28	220	181.5	297 ± 5
CKTB1000/3.5/60	1000	5	3.5	60	88	219
CKTB1000/3.5/70	1000	5	3.5	70	70	192
CKTB1000/3.5/70(I)	1000	5	3.5	70	70	190.7
CKTB1000/3.5/79	1000	5	3.5	79	86	180
CKTB1000/3.5/79(I)	1000	5	3.5	79	86	180
CKTB1000/3.5/79(II)	1000	5	3.5	79	70	190.7
CKTB1000/28/225	1000	40	28	225	183	297
CKTB1200/35/300	1200	50	35	300	253	475
CKTB1500/3.5/60	1500	5	3.5	60	70	190.7
CKTB1500/3.5/65	1500	5	3.5	65	70	190.7
CKTB1500/3.5/84	1500	5	3	84	70 +1.4	197 ± 2
CKTB1500/3.5/100	1500	5	3.5	100	90	180 ± 3
CKTB1500/10/180	1500	15	10	180	142.5	250
CKTB1500/24/220	1500	40	24	220	182.5	350 ± 5
CKTB1500/24/220(I)	1500	40	24	220	182	354
CKTB2000/3.5/63	2000	5	3.5	63	86	180
CKTB2000/10/200	2000	15	10	200	183	259 ± 5
CKTB2000/25/220	2000	35	21	220	212	368 ± 5
CKTB2300/10/160	2300	15	10	160	183	249 ± 5
CKTB2300/10/160(I)	2300	15	9	160	142.5	249 ± 5
CKTB2300/10/160(II)	2300	15	10	160	142.5	250
